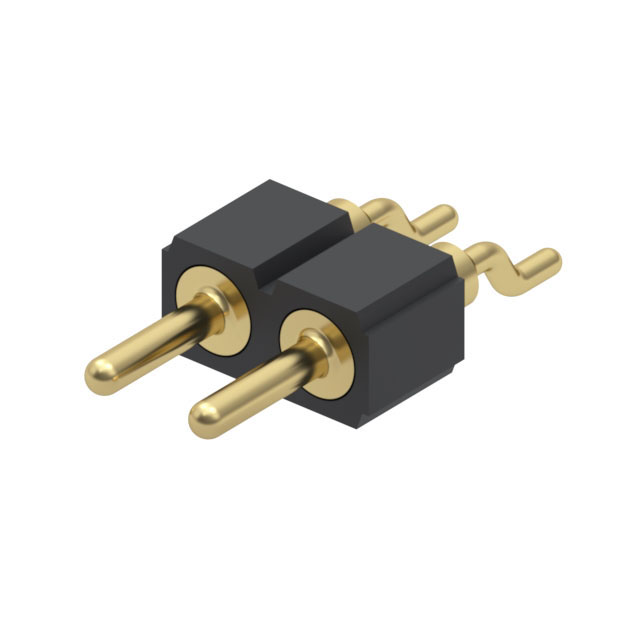

830-10-002-40-028000
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 830-10-002-40-028000 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 830-10-002-40-028000 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 830-10-002-40-028000 |
|---|---|
| Manufacturer | Mill-Max |
| Description | CONN HDR 2POS .100 HORIZ SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $1.65 | $1.584 | $1.32 | $1.122 | $0.957 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | 830-10-002-40-028000 | Manufacturer | Mill-Max |
|---|---|---|---|
| Description | CONN HDR 2POS .100 HORIZ SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 36272 pcs | Data sheet | 800,801,830 Series (in.)800,801,801(metric) |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board |
| Shrouding | Unshrouded | Series | 830 |
| Row Spacing - Mating | - | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Tube | Overall Contact Length | - |
| Other Names | ED3277 | Operating Temperature | - |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 2 | Mounting Type | Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 4 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA46), Nylon 4/6 |
| Insulation Height | 0.100" (2.54mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Surface Mount, Right Angle 2 position 0.100" (2.54mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Circular | Contact Material | - |
| Contact Length - Post | - | Contact Length - Mating | 0.140" (3.56mm) |
| Contact Finish Thickness - Post | 10.0µin (0.25µm) | Contact Finish Thickness - Mating | 10.0µin (0.25µm) |
| Contact Finish - Post | Gold | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | - |
