824-22-009-00-001000

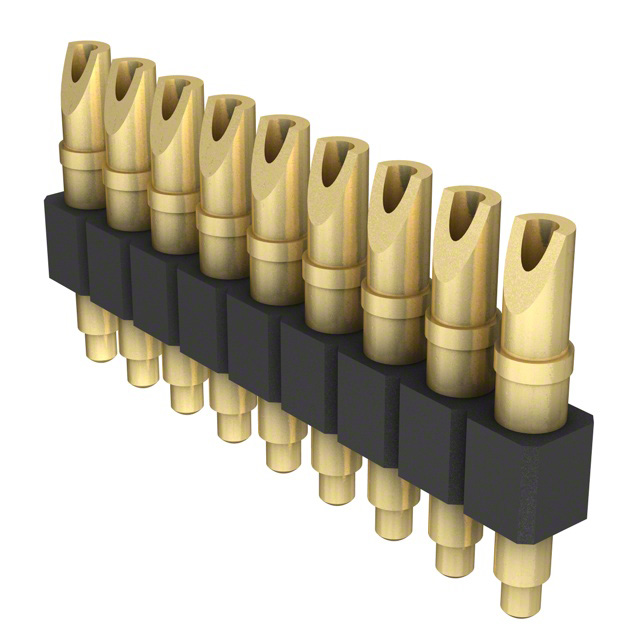

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 824-22-009-00-001000 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 824-22-009-00-001000 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 824-22-009-00-001000 |
|---|---|
| Manufacturer | Mill-Max |
| Description | CONN HEADER SPRING 9POS SLD CUP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $5.765 | $5.355 | $4.668 | $4.256 | ||
| 1000 pcs | 5000 pcs | 10000 pcs | |||
| $3.913 | $3.57 | $3.432 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 824-22-009-00-001000 | Manufacturer | Mill-Max |
|---|---|---|---|
| Description | CONN HEADER SPRING 9POS SLD CUP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 9179 pcs | Data sheet | 824,826 Series (metric)824, 826 Series (in.) |
| Category | Connectors, Interconnects | Series | 824 |
| Row Spacing | - | Pitch | 0.100" (2.54mm) |
| Packaging | Bulk | Other Names | ED8202-09 |
| Number of Rows | 1 | Number of Contacts | 9 |
| Mounting Type | Through Hole, Solder Cup | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material | Beryllium Copper | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Detailed Description | 9 Position Spring Piston Connector Through Hole, Solder Cup | Contact Finish Thickness | 20.0µin (0.51µm) |
| Contact Finish | Gold | Connector Type | Piston |
