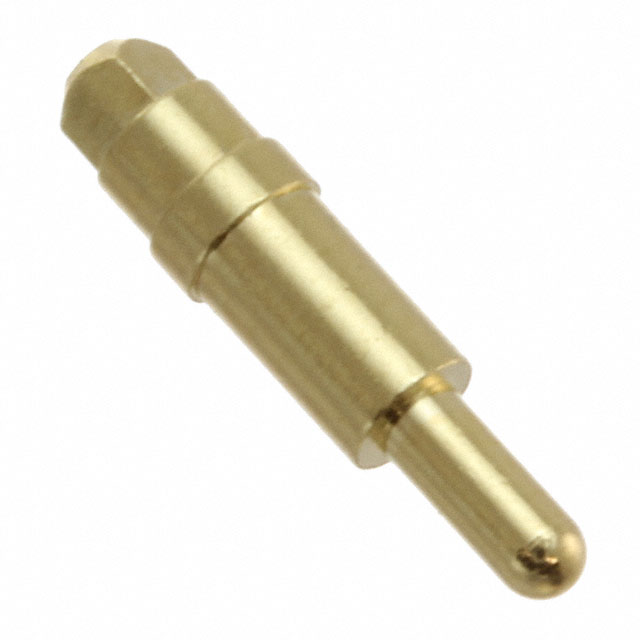

8237-0-05-15-00-00-03-0
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 8237-0-05-15-00-00-03-0 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 8237-0-05-15-00-00-03-0 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 8237-0-05-15-00-00-03-0 |
|---|---|
| Manufacturer | Mill-Max |
| Description | CONN PC PIN 0.060DIA GOLD |
| Lead Free Status / RoHS Status |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.159 | $0.149 | $0.134 | $0.119 | $0.114 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.104 | $0.099 | $0.082 | $0.074 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 8237-0-05-15-00-00-03-0 | Manufacturer | Mill-Max |
|---|---|---|---|
| Description | CONN PC PIN 0.060DIA GOLD | Lead Free Status / RoHS Status | |
| Quantity Available | 323093 pcs | Data sheet | Printed Circuit Pins (metric)Printed Circuit Pins (in) |
| Category | Connectors, Interconnects | Termination | Press-Fit |
| Terminal Type | PC Pin | Terminal Style | Flanged |
| Series | 8237 | Pin Size - Below Flange | 0.091" (2.31mm) Dia |
| Pin Size - Above Flange | 0.060" (1.52mm) Dia | Packaging | Bulk |
| Other Names | ED10972 | Mounting Type | Through Hole |
| Mounting Hole Diameter | 0.092" (2.34mm) | Material - Insulation | - |
| Manufacturer Standard Lead Time | 5 Weeks | Length - Overall | 0.472" (11.99mm) |
| Length - Below Flange | 0.063" (1.60mm) | Length - Above Flange | 0.153" (3.89mm) |
| Insulation Color | - | Insulation | Non-Insulated |
| Flange Diameter | 0.110" (2.79mm) | Detailed Description | PC Pin Terminal Connector Through Hole Gold 0.060" (1.52mm) Dia |
| Contact Material | Brass Alloy | Contact Finish Thickness | 10.0µin (0.25µm) |
| Contact Finish | Gold | Board Thickness | - |
