8114-0-15-15-16-27-04-0

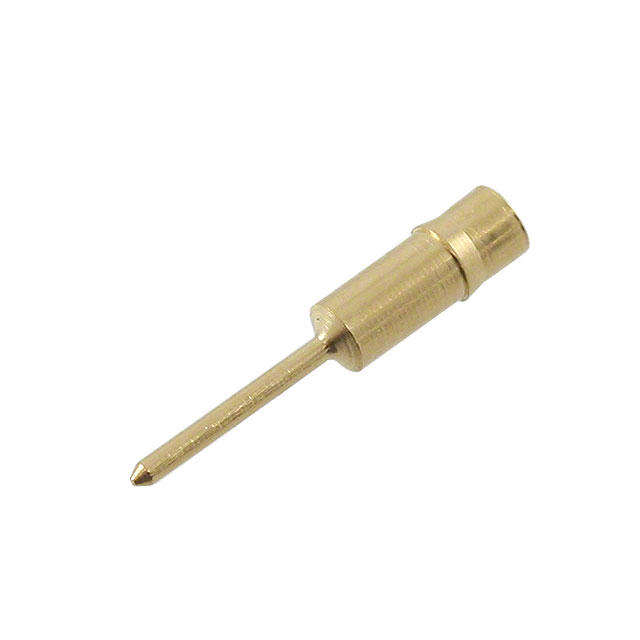

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 8114-0-15-15-16-27-04-0 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 8114-0-15-15-16-27-04-0 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 8114-0-15-15-16-27-04-0 |
|---|---|
| Manufacturer | Mill-Max |
| Description | CONN PIN RCPT .022-.034 PRESSFIT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.162 | $0.154 | $0.132 | $0.112 | $0.108 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.097 | $0.092 | $0.077 | $0.07 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 8114-0-15-15-16-27-04-0 | Manufacturer | Mill-Max |
|---|---|---|---|
| Description | CONN PIN RCPT .022-.034 PRESSFIT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 335837 pcs | Data sheet | Pin Receptacles (in.)Pin Receptacles (metric) |
| Category | Connectors, Interconnects | Termination | Press-Fit |
| Tail Type | Standard Tail | Tail Diameter | 0.020" (0.51mm) |
| Socket Depth | 0.150" (3.81mm) | Series | 8114 |
| Pin Hole Diameter | 0.051" (1.30mm) | Packaging | Bulk |
| Other Names | 8.11402E+15 8114-015151627040 8114-015151627040-ND 8114015151627040 ED90542 |
Operating Temperature | -55°C ~ 125°C |
| Mounting Hole Diameter | 0.065" (1.65mm) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 5 Weeks | Length - Overall | 0.370" (9.40mm) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insertion Force | - |
| Flange Diameter | - | Features | - |
| Detailed Description | Pin Receptacle Connector 0.022" ~ 0.034" (0.56mm ~ 0.86mm) Standard Tail Press-Fit | Contact Material | Beryllium Copper |
| Contact Finish Thickness | 30.0µin (0.76µm) | Contact Finish | Gold |
| Board Thickness | - | Accepts Square Pin Size | 0.025" (0.64mm) |
| Accepts Pin Diameter | 0.022" ~ 0.034" (0.56mm ~ 0.86mm) |
