809-43-040-10-001000

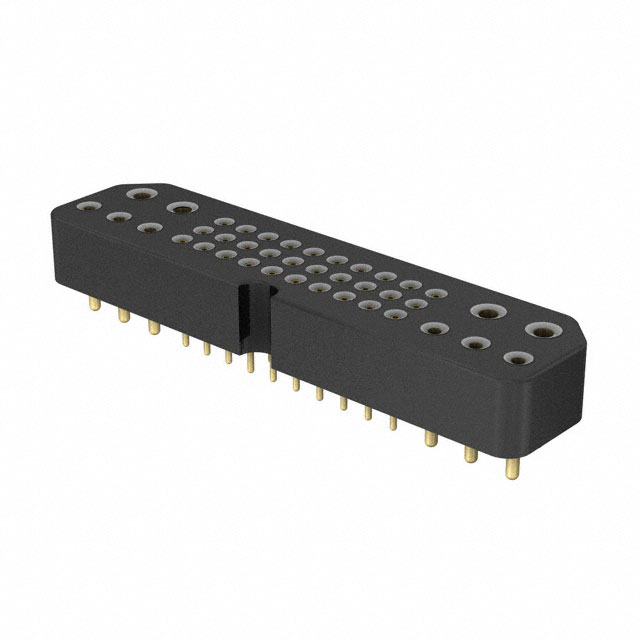

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 809-43-040-10-001000 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 809-43-040-10-001000 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 809-43-040-10-001000 |
|---|---|
| Manufacturer | Mill-Max |
| Description | SIGNAL CONN 40P POWER SOCKET |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 30 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $7.023 | $6.521 | $5.852 | $5.685 | ||
| 100 pcs | 250 pcs | 500 pcs | |||
| $5.016 | $4.682 | $4.581 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 809-43-040-10-001000 | Manufacturer | Mill-Max |
|---|---|---|---|
| Description | SIGNAL CONN 40P POWER SOCKET | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 6752 pcs | Data sheet | 808,809 Series (metric)808, 809 Series (in.) |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board |
| Series | 809 | Row Spacing - Mating | - |
| Pitch - Mating | - | Packaging | Tube |
| Other Names | ED1395 | Operating Temperature | - |
| Number of Positions Loaded | All | Number of Positions | 40 (30 + 10 Power) |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | - | Mated Stacking Heights | 10.54mm |
| Manufacturer Standard Lead Time | 4 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polyphenylene Sulfide (PPS) | Insulation Height | 0.250" (6.35mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | - | Fastening Type | Push-Pull |
| Detailed Description | 40 (30 + 10 Power) Position Receptacle Connector Through Hole Gold | Current Rating | - |
| Contact Type | Female Socket | Contact Shape | Circular |
| Contact Material | Beryllium Copper | Contact Length - Post | 0.125" (3.18mm) |
| Contact Finish Thickness - Post | 200.0µin (5.08µm) | Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Receptacle | Applications | - |
