805-43-039-10-012000

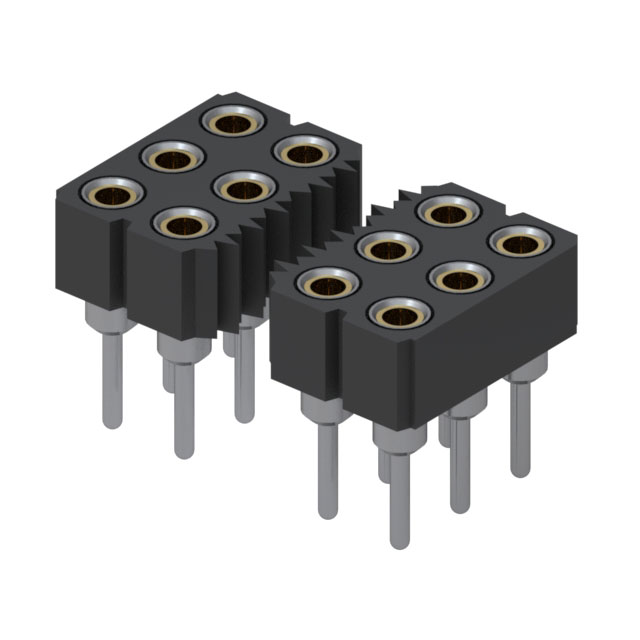

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 805-43-039-10-012000 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 805-43-039-10-012000 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 805-43-039-10-012000 |
|---|---|
| Manufacturer | Mill-Max |
| Description | CONN SOCKET 39POS .100" 3ROW T/H |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $3.435 | $3.19 | $2.781 | $2.535 | ||
| 1000 pcs | 5000 pcs | 10000 pcs | |||
| $2.331 | $2.127 | $2.045 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 805-43-039-10-012000 | Manufacturer | Mill-Max |
|---|---|---|---|
| Description | CONN SOCKET 39POS .100" 3ROW T/H | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 17907 pcs | Data sheet | 804, 805 Series (in.)804,805 Series (metric) |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board |
| Series | 805 | Row Spacing - Mating | 0.100" (2.54mm) |
| Pitch - Mating | 0.100" (2.54mm) | Packaging | Bulk |
| Other Names | 805-43-03910-012000 8054303910012000 ED8054-39 |
Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 3 | Number of Positions Loaded | All |
| Number of Positions | 39 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polycyclohexylenedimethylene Terephthalate (PCT), Polyester | Insulation Height | 0.165" (4.20mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | - | Fastening Type | Push-Pull |
| Detailed Description | 39 Position Receptacle Connector 0.100" (2.54mm) Through Hole Gold | Current Rating | 4.5A |
| Contact Type | Female Socket | Contact Shape | Circular |
| Contact Material | Beryllium Copper | Contact Length - Post | 0.125" (3.18mm) |
| Contact Finish Thickness - Post | 200.0µin (5.08µm) | Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Receptacle | Applications | - |
