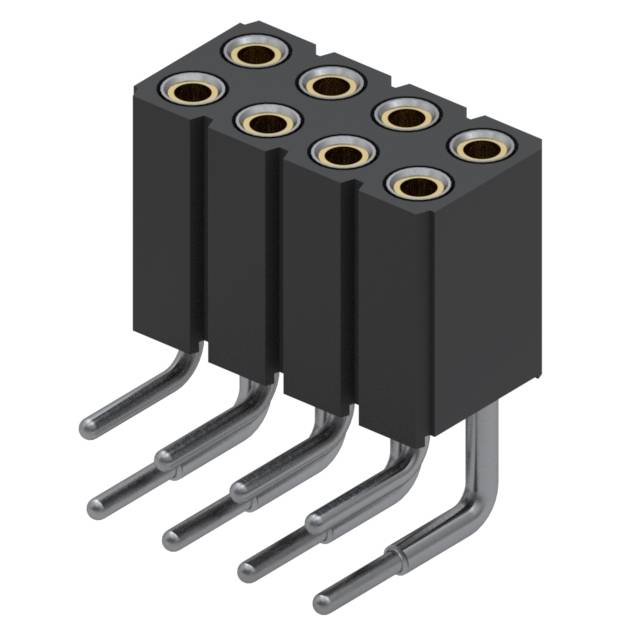

803-43-008-20-001000
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 803-43-008-20-001000 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 803-43-008-20-001000 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 803-43-008-20-001000 |
|---|---|
| Manufacturer | Mill-Max |
| Description | CONN SOCKET 8PIN DUAL .100 R/A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $2.088 | $1.938 | $1.69 | $1.541 | ||
| 1000 pcs | 5000 pcs | 10000 pcs | |||
| $1.416 | $1.292 | $1.242 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 803-43-008-20-001000 | Manufacturer | Mill-Max |
|---|---|---|---|
| Description | CONN SOCKET 8PIN DUAL .100 R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 25409 pcs | Data sheet | 802, 803 Series (in.)802, 803 Series (metric) |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board |
| Series | 803 | Row Spacing - Mating | 0.100" (2.54mm) |
| Pitch - Mating | 0.100" (2.54mm) | Packaging | Bulk |
| Other Names | ED1314-08 | Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 8 | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polycyclohexylenedimethylene Terephthalate (PCT), Polyester | Insulation Height | 0.200" (5.08mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | - | Fastening Type | Push-Pull |
| Detailed Description | 8 Position Receptacle Connector 0.100" (2.54mm) Through Hole, Right Angle Gold | Current Rating | 4.5A |
| Contact Type | Female Socket | Contact Shape | Circular |
| Contact Material | Beryllium Copper | Contact Length - Post | 0.126" (3.20mm) |
| Contact Finish Thickness - Post | 200.0µin (5.08µm) | Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Receptacle | Applications | - |
