803-41-032-10-003000

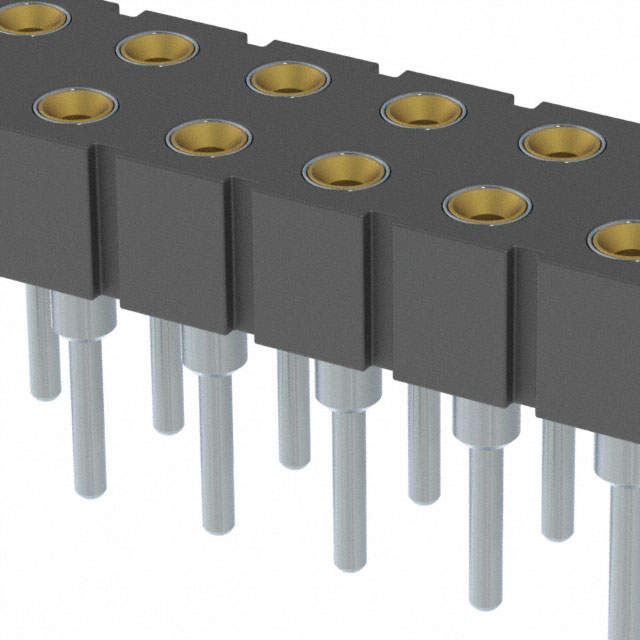

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 803-41-032-10-003000 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 803-41-032-10-003000 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 803-41-032-10-003000 |
|---|---|
| Manufacturer | Mill-Max |
| Description | CONN HDR PIN |
| Lead Free Status / RoHS Status | RoHS Compliant |
| Reference Price (In US Dollars) | 50 pcs | ||||
|---|---|---|---|---|---|
| $4.946 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 803-41-032-10-003000 | Manufacturer | Mill-Max |
|---|---|---|---|
| Description | CONN HDR PIN | Lead Free Status / RoHS Status | RoHS Compliant |
| Quantity Available | 6827 pcs | Data sheet | 800-xx-0xx-10-007000 (in.)802, 803 Series (metric) |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board |
| Series | 803 | Row Spacing - Mating | 0.100" (2.54mm) |
| RoHS Status | RoHS Compliant | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Bulk | Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 32 | Mounting Type | Through Hole |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 4 Weeks | Insulation Material | Polycyclohexylenedimethylene Terephthalate (PCT), Polyester |
| Insulation Height | 0.165" (4.20mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | 32 Position Receptacle Connector Through Hole |
| Current Rating | 4.5A | Contact Type | Female Socket |
| Contact Shape | Circular | Contact Material | Beryllium Copper |
| Contact Length - Post | 0.125" (3.18mm) | Contact Finish Thickness - Post | 200.0µin (5.08µm) |
| Contact Finish Thickness - Mating | 10.0µin (0.25µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Gold | Connector Type | Receptacle |
| Applications | - |
