803-41-008-61-001000

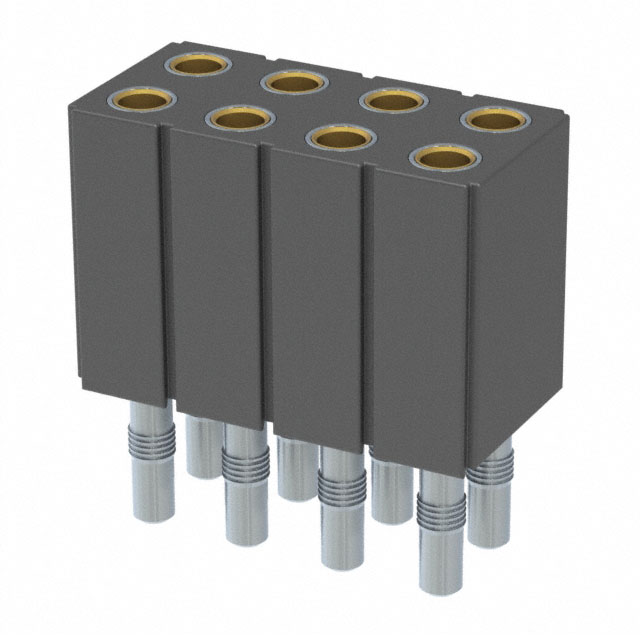

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 803-41-008-61-001000 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 803-41-008-61-001000 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 803-41-008-61-001000 |
|---|---|
| Manufacturer | Mill-Max |
| Description | CONN HDR PIN |
| Lead Free Status / RoHS Status | RoHS Compliant |
| Reference Price (In US Dollars) | 50 pcs | ||||
|---|---|---|---|---|---|
| $4.789 | |||||
- Product parameter
Product parameter
| Part Number | 803-41-008-61-001000 | Manufacturer | Mill-Max |
|---|---|---|---|
| Description | CONN HDR PIN | Lead Free Status / RoHS Status | RoHS Compliant |
| Quantity Available | 6235 pcs | Data sheet | |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Press-Fit, Solder | Style | Board to Board |
| Series | 803 | Row Spacing - Mating | 0.100" (2.54mm) |
| RoHS Status | RoHS Compliant | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Bulk | Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 8 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | Not Applicable | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 4 Weeks |
| Insulation Material | Polycyclohexylenedimethylene Terephthalate (PCT), Polyester | Insulation Height | 0.276" (7.00mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | - | Fastening Type | Push-Pull |
| Detailed Description | 8 Position Receptacle Connector Through Hole | Current Rating | 4.5A |
| Contact Type | Female Socket | Contact Shape | Circular |
| Contact Material | Beryllium Copper | Contact Length - Post | 0.104" (2.64mm) |
| Contact Finish Thickness - Post | 200.0µin (5.08µm) | Contact Finish Thickness - Mating | 10.0µin (0.25µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Receptacle | Applications | - |
