802-90-064-61-001000

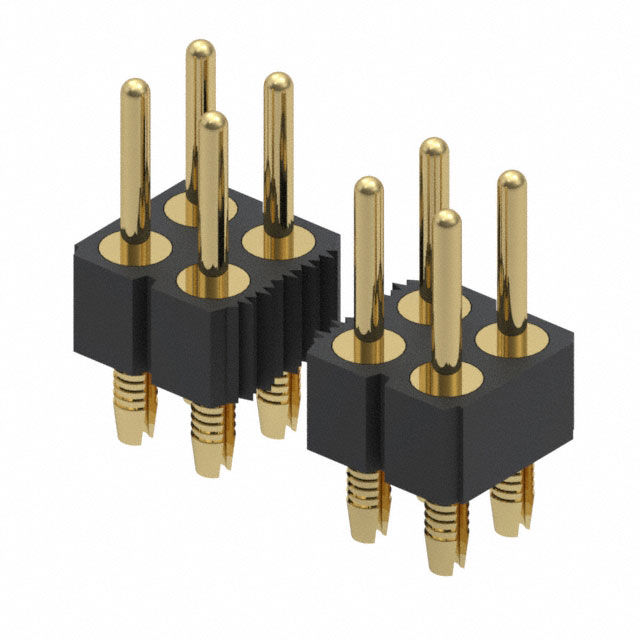

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 802-90-064-61-001000 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 802-90-064-61-001000 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 802-90-064-61-001000 |
|---|---|
| Manufacturer | Mill-Max |
| Description | HEADER DUAL INLINE SLDRLSS 64POS |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | 54 pcs | ||||
|---|---|---|---|---|---|
| $5.775 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 802-90-064-61-001000 | Manufacturer | Mill-Max |
|---|---|---|---|
| Description | HEADER DUAL INLINE SLDRLSS 64POS | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 5378 pcs | Data sheet | 802,803 Press-Fit Series (metric)802,803 Press-Fit Series (in.) |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Press-Fit, Solder | Style | Board to Board |
| Shrouding | Unshrouded | Series | 802 |
| Row Spacing - Mating | 0.100" (2.54mm) | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Bulk | Overall Contact Length | 0.405" (10.29mm) |
| Other Names | 80290-06461001000 8029006461001000 |
Operating Temperature | - |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 64 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 4 Weeks |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | Insulation Material | Polycyclohexylenedimethylene Terephthalate (PCT) |
| Insulation Height | 0.110" (2.79mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Through Hole 64 position 0.100" (2.54mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Circular | Contact Material | Brass Alloy |
| Contact Length - Post | 0.104" (2.64mm) | Contact Length - Mating | 0.191" (4.85mm) |
| Contact Finish Thickness - Post | 200.0µin (5.08µm) | Contact Finish Thickness - Mating | 200.0µin (5.08µm) |
| Contact Finish - Post | Tin-Lead | Contact Finish - Mating | Tin-Lead |
| Connector Type | Header | Applications | - |
