802-10-042-10-001000

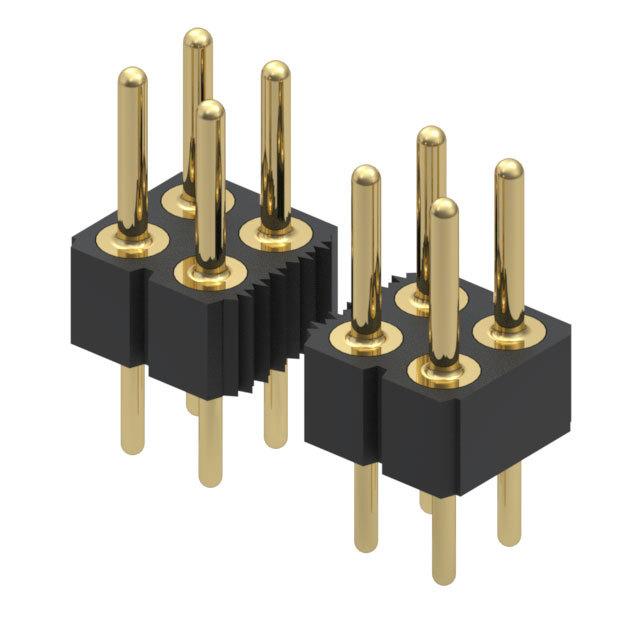

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 802-10-042-10-001000 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 802-10-042-10-001000 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 802-10-042-10-001000 |
|---|---|
| Manufacturer | Mill-Max |
| Description | CONN HDR 42 PIN DUAL ROW |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $2.654 | $2.375 | $1.956 | $1.546 | ||
| 1000 pcs | 5000 pcs | 10000 pcs | |||
| $1.327 | $1.211 | $1.164 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 802-10-042-10-001000 | Manufacturer | Mill-Max |
|---|---|---|---|
| Description | CONN HDR 42 PIN DUAL ROW | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 33778 pcs | Data sheet | 802, 803 Series (in.)802, 803 Series (metric) |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board |
| Shrouding | Unshrouded | Series | 802 |
| Row Spacing - Mating | 0.100" (2.54mm) | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Bulk | Overall Contact Length | 0.438" (11.12mm) |
| Other Names | ED1309-42 | Operating Temperature | - |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 42 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Mated Stacking Heights | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polycyclohexylenedimethylene Terephthalate (PCT) | Insulation Height | 0.110" (2.79mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | - | Fastening Type | Push-Pull |
| Detailed Description | Connector Header Through Hole 42 position 0.100" (2.54mm) | Current Rating | - |
| Contact Type | Male Pin | Contact Shape | Circular |
| Contact Material | Brass Alloy | Contact Length - Post | 0.118" (3.00mm) |
| Contact Length - Mating | 0.195" (4.95mm) | Contact Finish Thickness - Post | 10.0µin (0.25µm) |
| Contact Finish Thickness - Mating | 10.0µin (0.25µm) | Contact Finish - Post | Gold |
| Contact Finish - Mating | Gold | Connector Type | Header |
| Applications | - |
