802-10-006-10-052000

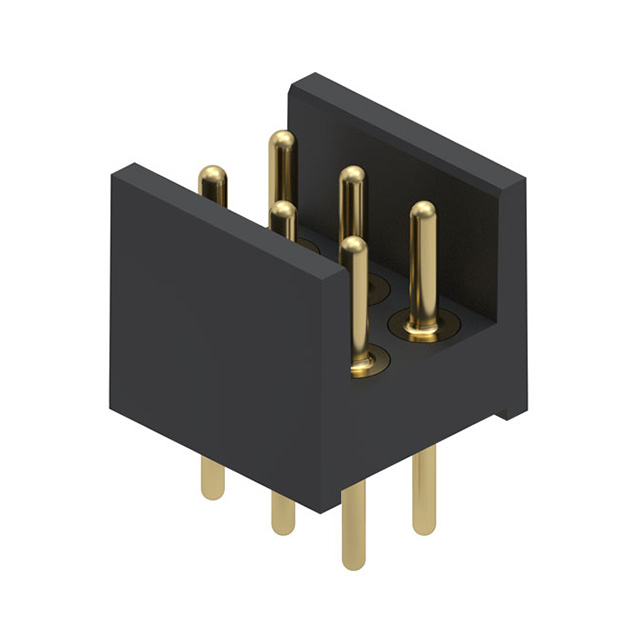

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 802-10-006-10-052000 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 802-10-006-10-052000 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 802-10-006-10-052000 |
|---|---|
| Manufacturer | Mill-Max |
| Description | CONN HEADER 6POS 0.100" T/H |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 67 pcs | 134 pcs | 536 pcs | 1005 pcs |
|---|---|---|---|---|---|
| $2.06 | $1.731 | $1.648 | $1.401 | $1.195 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | 802-10-006-10-052000 | Manufacturer | Mill-Max |
|---|---|---|---|
| Description | CONN HEADER 6POS 0.100" T/H | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 31178 pcs | Data sheet | 800,802 Series (in.)800,802 Series (metric) |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board |
| Shrouding | Shrouded - 2 Wall | Series | 802 |
| Row Spacing - Mating | 0.100" (2.54mm) | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Tube | Overall Contact Length | 0.395" (10.03mm) |
| Other Names | 8021000610052000 ED1100 |
Operating Temperature | - |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 6 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 4 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyphenylene Sulfide (PPS) |
| Insulation Height | 0.271" (6.88mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Through Hole 6 position 0.100" (2.54mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Circular | Contact Material | Brass Alloy |
| Contact Length - Post | 0.124" (3.15mm) | Contact Length - Mating | - |
| Contact Finish Thickness - Post | 10.0µin (0.25µm) | Contact Finish Thickness - Mating | 10.0µin (0.25µm) |
| Contact Finish - Post | Gold | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | - |
