802-10-004-10-002000

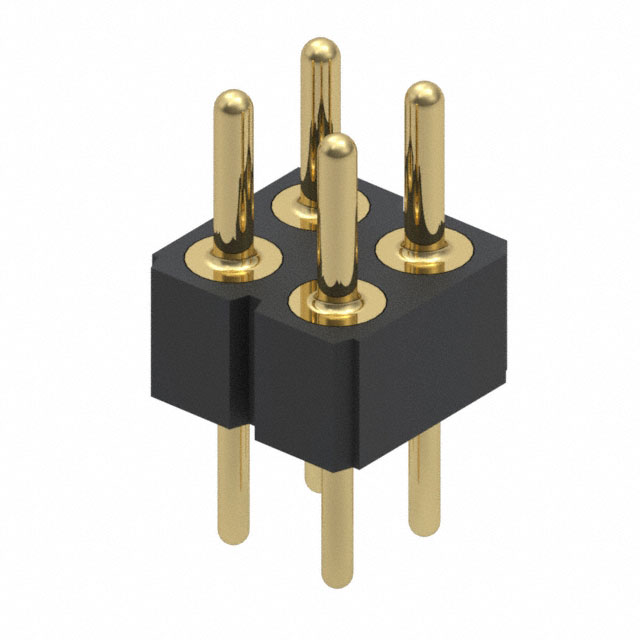

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 802-10-004-10-002000 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 802-10-004-10-002000 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 802-10-004-10-002000 |
|---|---|
| Manufacturer | Mill-Max |
| Description | CONN HDR 4 PIN DUAL ROW LO PRO |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.74 | $0.662 | $0.545 | $0.431 | ||
| 1000 pcs | 5000 pcs | 10000 pcs | |||
| $0.37 | $0.338 | $0.325 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 802-10-004-10-002000 | Manufacturer | Mill-Max |
|---|---|---|---|
| Description | CONN HDR 4 PIN DUAL ROW LO PRO | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 59153 pcs | Data sheet | 800,801,802,803 Series (in.)800,801,802,803 Series (metric) |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board |
| Shrouding | Unshrouded | Series | 802 |
| Row Spacing - Mating | 0.100" (2.54mm) | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Bulk | Overall Contact Length | 0.385" (9.77mm) |
| Other Names | ED1310-04 | Operating Temperature | - |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 4 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Mated Stacking Heights | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polycyclohexylenedimethylene Terephthalate (PCT) | Insulation Height | 0.110" (2.79mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | - | Fastening Type | Push-Pull |
| Detailed Description | Connector Header Through Hole 4 position 0.100" (2.54mm) | Current Rating | - |
| Contact Type | Male Pin | Contact Shape | Circular |
| Contact Material | Brass Alloy | Contact Length - Post | 0.118" (3.00mm) |
| Contact Length - Mating | 0.142" (3.61mm) | Contact Finish Thickness - Post | 10.0µin (0.25µm) |
| Contact Finish Thickness - Mating | 10.0µin (0.25µm) | Contact Finish - Post | Gold |
| Contact Finish - Mating | Gold | Connector Type | Header |
| Applications | - |
