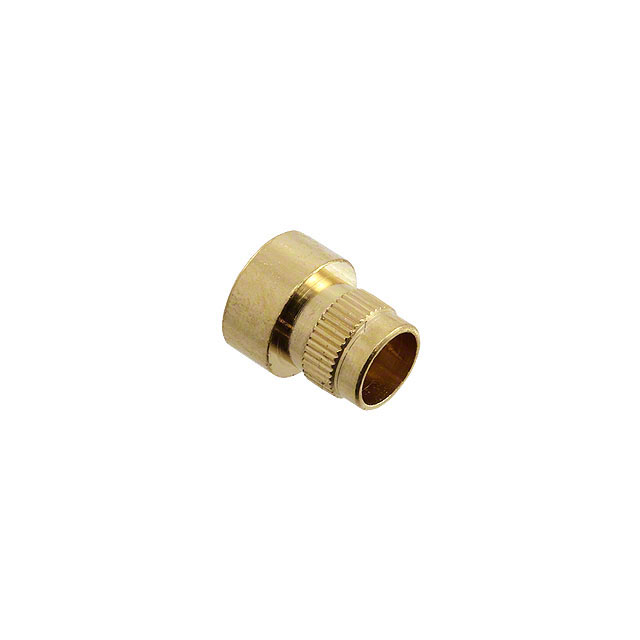

8016-0-15-15-07-27-10-0
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 8016-0-15-15-07-27-10-0 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 8016-0-15-15-07-27-10-0 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 8016-0-15-15-07-27-10-0 |
|---|---|
| Manufacturer | Mill-Max |
| Description | CONN PIN RCPT .065-.082 KNURL |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.344 | $0.304 | $0.286 | $0.274 | $0.262 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.238 | $0.214 | $0.191 | $0.173 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 8016-0-15-15-07-27-10-0 | Manufacturer | Mill-Max |
|---|---|---|---|
| Description | CONN PIN RCPT .065-.082 KNURL | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 129483 pcs | Data sheet | Pin Receptacles (metric)Pin Receptacles (in.) |
| Category | Connectors, Interconnects | Termination | Press-Fit, Knurled |
| Tail Type | No Tail | Tail Diameter | - |
| Socket Depth | 0.210" (5.33mm) | Series | 8016 |
| Pin Hole Diameter | 0.107" (2.72mm) | Packaging | Bulk |
| Other Names | ED1303 | Operating Temperature | -55°C ~ 125°C |
| Mounting Hole Diameter | 0.131" (3.33mm) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 5 Weeks | Length - Overall | 0.210" (5.33mm) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insertion Force | - |
| Flange Diameter | 0.172" (4.37mm) | Features | - |
| Detailed Description | Pin Receptacle Connector 0.065" ~ 0.082" (1.65mm ~ 2.08mm) No Tail Press-Fit, Knurled | Contact Material | Beryllium Copper |
| Contact Finish Thickness | 30.0µin (0.76µm) | Contact Finish | Gold |
| Board Thickness | - | Accepts Square Pin Size | - |
| Accepts Pin Diameter | 0.065" ~ 0.082" (1.65mm ~ 2.08mm) |
