801-47-002-10-012000

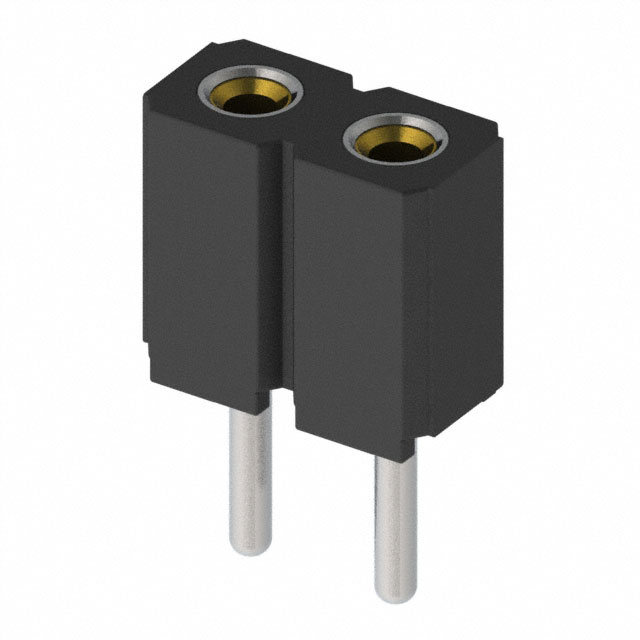

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 801-47-002-10-012000 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 801-47-002-10-012000 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 801-47-002-10-012000 |
|---|---|
| Manufacturer | Mill-Max |
| Description | STANDARD SOCKET HEADER |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.162 | $0.153 | $0.118 | $0.102 | ||
| 1000 pcs | 5000 pcs | 10000 pcs | |||
| $0.084 | $0.074 | $0.069 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 801-47-002-10-012000 | Manufacturer | Mill-Max |
|---|---|---|---|
| Description | STANDARD SOCKET HEADER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 278053 pcs | Data sheet | 800, 801 Series (in.)800, 801 Series (metric) |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board |
| Series | 801 | Row Spacing - Mating | - |
| Pitch - Mating | 0.100" (2.54mm) | Packaging | Bulk |
| Other Names | ED11197 | Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 2 | Mounting Type | Through Hole |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 4 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polycyclohexylenedimethylene Terephthalate (PCT), Polyester | Insulation Height | 0.165" (4.20mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | - | Fastening Type | Push-Pull |
| Detailed Description | 2 Position Receptacle Connector Through Hole | Current Rating | 4.5A |
| Contact Type | Female Socket | Contact Shape | Circular |
| Contact Material | Beryllium Copper | Contact Length - Post | 0.125" (3.18mm) |
| Contact Finish Thickness - Post | 200.0µin (5.08µm) | Contact Finish Thickness - Mating | Flash |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Receptacle | Applications | - |
