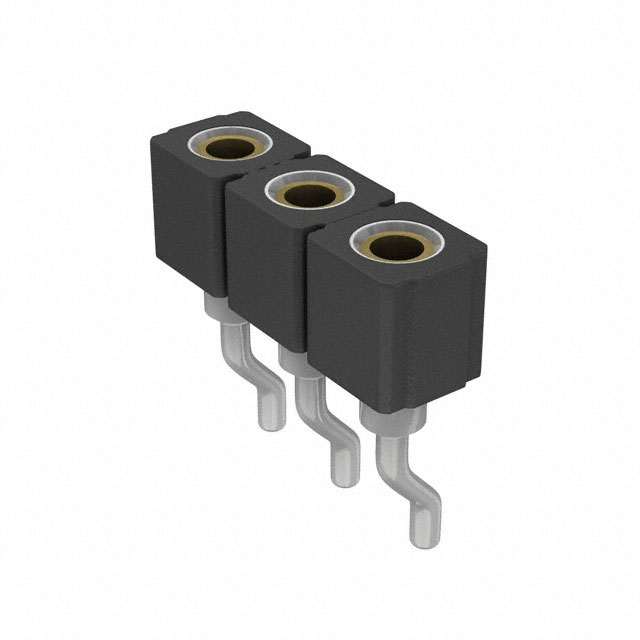

801-43-003-40-002000
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 801-43-003-40-002000 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 801-43-003-40-002000 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 801-43-003-40-002000 |
|---|---|
| Manufacturer | Mill-Max |
| Description | CONN SOCKET 3POS SIP .100 R/ANG |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $0.834 | $0.758 | $0.65 | |||
| 500 pcs | 1000 pcs | 5000 pcs | |||
| $0.541 | $0.464 | $0.412 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 801-43-003-40-002000 | Manufacturer | Mill-Max |
|---|---|---|---|
| Description | CONN SOCKET 3POS SIP .100 R/ANG | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 92990 pcs | Data sheet | 800,801,830 Series (in.)800,801,801(metric) |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board |
| Series | 801 | Row Spacing - Mating | - |
| Pitch - Mating | 0.100" (2.54mm) | Packaging | Bulk |
| Other Names | 8.014300340002E+15 8014300340002000 ED90301 |
Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 3 | Mounting Type | Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 4 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA46), Nylon 4/6 |
| Insulation Height | 0.100" (2.54mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | 3 Position Receptacle Connector 0.100" (2.54mm) Surface Mount, Right Angle Gold |
| Current Rating | 4.5A | Contact Type | Female Socket |
| Contact Shape | Circular | Contact Material | Beryllium Copper |
| Contact Length - Post | - | Contact Finish Thickness - Post | 200.0µin (5.08µm) |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Gold | Connector Type | Receptacle |
| Applications | - |
