801-13-009-10-007000

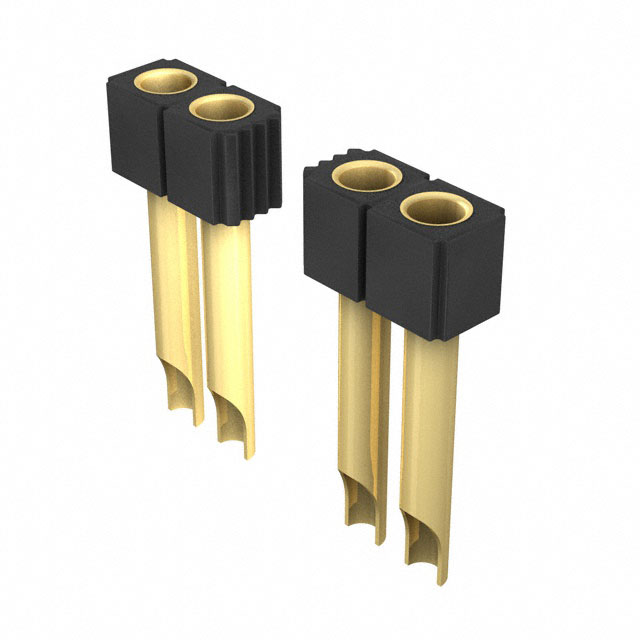

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 801-13-009-10-007000 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 801-13-009-10-007000 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 801-13-009-10-007000 |
|---|---|
| Manufacturer | Mill-Max |
| Description | SOLDER CUP STRIP, SINGLE ROW |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $2.826 | $2.709 | $2.238 | $1.885 | $1.649 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | 801-13-009-10-007000 | Manufacturer | Mill-Max |
|---|---|---|---|
| Description | SOLDER CUP STRIP, SINGLE ROW | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 23002 pcs | Data sheet | 800-xx-0xx-10-007000 (metric)800-xx-0xx-10-007000 (in.) |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder Cup | Style | Board to Board |
| Series | 801 | Row Spacing - Mating | - |
| Pitch - Mating | 0.100" (2.54mm) | Packaging | Bulk |
| Other Names | ED1444 | Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 9 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 4 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polycyclohexylenedimethylene Terephthalate (PCT), Polyester |
| Insulation Height | 0.110" (2.79mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | 9 Position Receptacle Connector 0.100" (2.54mm) Through Hole Gold |
| Current Rating | 4.5A | Contact Type | Female Socket |
| Contact Shape | Circular | Contact Material | Beryllium Copper |
| Contact Length - Post | 0.340" (8.64mm) | Contact Finish Thickness - Post | 10.0µin (0.25µm) |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) | Contact Finish - Post | Gold |
| Contact Finish - Mating | Gold | Connector Type | Receptacle |
| Applications | - |
