800-10-007-40-002000

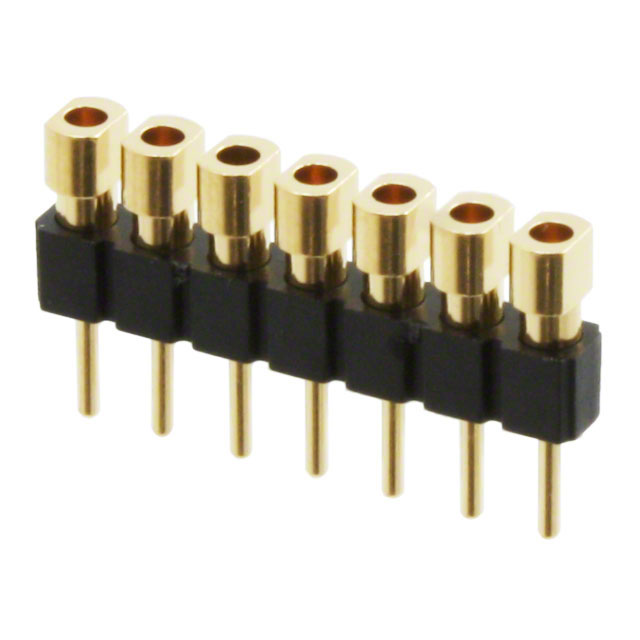

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 800-10-007-40-002000 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 800-10-007-40-002000 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 800-10-007-40-002000 |
|---|---|
| Manufacturer | Mill-Max |
| Description | CONN HEADER 7POS .100" HORIZ SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 203 pcs | ||||
|---|---|---|---|---|---|
| $1.885 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 800-10-007-40-002000 | Manufacturer | Mill-Max |
|---|---|---|---|
| Description | CONN HEADER 7POS .100" HORIZ SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 18040 pcs | Data sheet | 800,801,830 Series (in.)800,801,801(metric) |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board |
| Shrouding | Unshrouded | Series | 800 |
| Row Spacing - Mating | - | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Bulk | Overall Contact Length | - |
| Other Names | 8001000740002000 ED90552 |
Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 7 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 4 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA46), Nylon 4/6 |
| Insulation Height | 0.110" (2.79mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Surface Mount 7 position 0.100" (2.54mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Circular | Contact Material | Brass |
| Contact Length - Post | - | Contact Length - Mating | 0.147" (3.73mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 10.0µin (0.25µm) |
| Contact Finish - Post | - | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | - |
