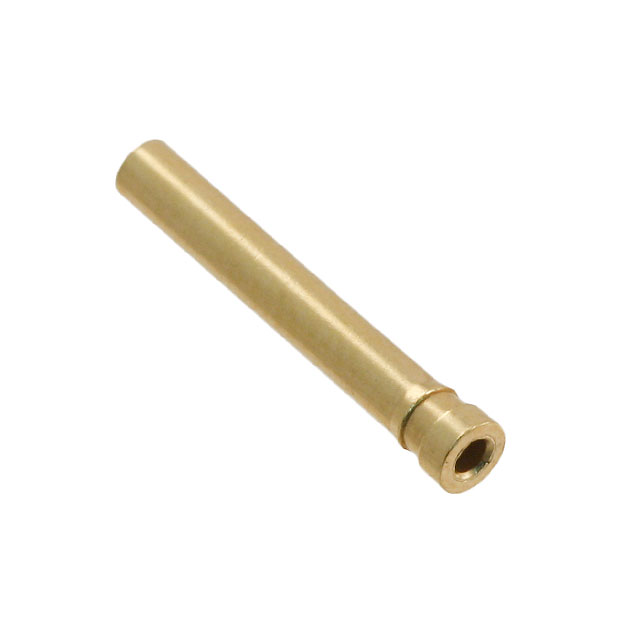

7009-0-19-15-15-27-10-0
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 7009-0-19-15-15-27-10-0 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 7009-0-19-15-15-27-10-0 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 7009-0-19-15-15-27-10-0 |
|---|---|
| Manufacturer | Mill-Max |
| Description | CONN PIN RCPT .020-.032 PRESSFIT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.21 | $0.197 | $0.177 | $0.157 | $0.151 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.137 | $0.131 | $0.108 | $0.098 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 7009-0-19-15-15-27-10-0 | Manufacturer | Mill-Max |
|---|---|---|---|
| Description | CONN PIN RCPT .020-.032 PRESSFIT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 210016 pcs | Data sheet | Pin Receptacles (in.)Pin Receptacles (metric) |
| Category | Connectors, Interconnects | Termination | Press-Fit |
| Tail Type | No Tail | Tail Diameter | - |
| Socket Depth | 0.150" (3.81mm) | Series | 7009 |
| Pin Hole Diameter | 0.047" (1.19mm) | Packaging | Bulk |
| Other Names | 7.00902E+15 7009019151527100 ED90594 |
Operating Temperature | -55°C ~ 125°C |
| Mounting Hole Diameter | 0.063" (1.60mm) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 5 Weeks | Length - Overall | 0.450" (11.43mm) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insertion Force | - |
| Flange Diameter | 0.072" (1.83mm) | Features | - |
| Detailed Description | Pin Receptacle Connector 0.020" ~ 0.032" (0.51mm ~ 0.81mm) No Tail Press-Fit | Contact Material | Beryllium Copper |
| Contact Finish Thickness | 30.0µin (0.76µm) | Contact Finish | Gold |
| Board Thickness | - | Accepts Square Pin Size | - |
| Accepts Pin Diameter | 0.020" ~ 0.032" (0.51mm ~ 0.81mm) |
