6430-0-00-15-00-00-03-0

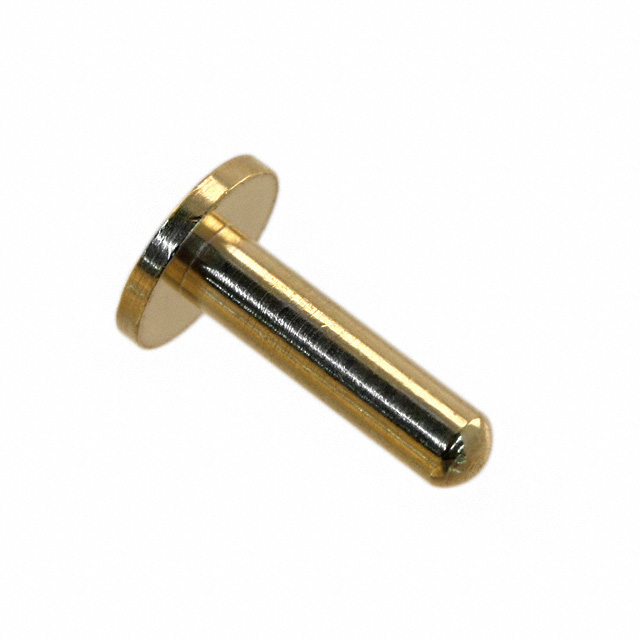

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 6430-0-00-15-00-00-03-0 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 6430-0-00-15-00-00-03-0 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 6430-0-00-15-00-00-03-0 |
|---|---|
| Manufacturer | Mill-Max |
| Description | CONN PC PIN CIRC |
| Lead Free Status / RoHS Status | RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.062 | $0.058 | $0.044 | $0.037 | $0.036 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.031 | $0.03 | $0.026 | $0.024 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 6430-0-00-15-00-00-03-0 | Manufacturer | Mill-Max |
|---|---|---|---|
| Description | CONN PC PIN CIRC | Lead Free Status / RoHS Status | RoHS Compliant |
| Quantity Available | 1011136 pcs | Data sheet | Printed Circuit Pins (in.)Printed Circuit Pins (metric) |
| Category | Connectors, Interconnects | Termination | Press-Fit |
| Terminal Type | PC Pin | Terminal Style | Single End |
| Series | 6430 | RoHS Status | RoHS Compliant |
| Pin Size - Below Flange | 0.019" (0.48mm) Dia | Pin Size - Above Flange | 0.053" (1.35mm) Dia |
| Packaging | Bulk | Other Names | 6430-0-00-15-00-00-03-0-ND ED10166 |
| Mounting Type | Through Hole | Mounting Hole Diameter | 0.025" (0.64mm) |
| Moisture Sensitivity Level (MSL) | Not Applicable | Material - Insulation | - |
| Manufacturer Standard Lead Time | 5 Weeks | Length - Overall | 0.145" (3.68mm) |
| Length - Below Flange | 0.035" (0.89mm) | Length - Above Flange | 0.131" (3.33mm) |
| Insulation Color | - | Insulation | Non-Insulated |
| Flange Diameter | 0.028" (0.71mm) | Detailed Description | PC Pin Terminal Connector Through Hole Gold 0.053" (1.35mm) Dia |
| Contact Material | Brass Alloy | Contact Finish Thickness | 10.0µin (0.25µm) |
| Contact Finish | Gold | Board Thickness | - |
