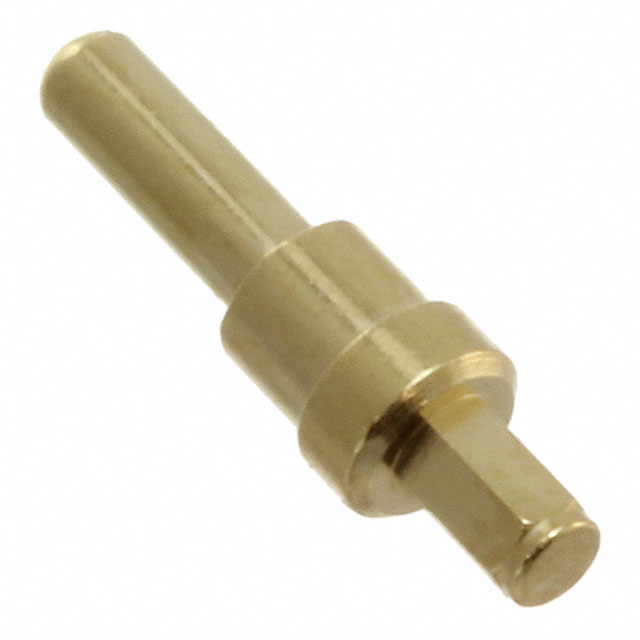

6035-0-00-15-00-00-03-0
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 6035-0-00-15-00-00-03-0 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 6035-0-00-15-00-00-03-0 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 6035-0-00-15-00-00-03-0 |
|---|---|
| Manufacturer | Mill-Max |
| Description | CONN PC PIN 0.062DIA GOLD |
| Lead Free Status / RoHS Status |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.159 | $0.151 | $0.13 | $0.11 | $0.106 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.095 | $0.091 | $0.076 | $0.069 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 6035-0-00-15-00-00-03-0 | Manufacturer | Mill-Max |
|---|---|---|---|
| Description | CONN PC PIN 0.062DIA GOLD | Lead Free Status / RoHS Status | |
| Quantity Available | 327778 pcs | Data sheet | Printed Circuit Pins (metric)Printed Circuit Pins (in) |
| Category | Connectors, Interconnects | Termination | Press-Fit |
| Terminal Type | PC Pin | Terminal Style | Flanged, Pin Retention |
| Series | 6035 | Pin Size - Below Flange | 0.067" (1.70mm) Hex |
| Pin Size - Above Flange | 0.062" (1.57mm) Dia | Packaging | Bulk |
| Other Names | ED10970 | Mounting Type | Through Hole |
| Mounting Hole Diameter | 0.068" (1.73mm) | Material - Insulation | - |
| Manufacturer Standard Lead Time | 5 Weeks | Length - Overall | 0.419" (10.64mm) |
| Length - Below Flange | 0.100" (2.54mm) | Length - Above Flange | 0.188" (4.78mm) |
| Insulation Color | - | Insulation | Non-Insulated |
| Flange Diameter | 0.113" (2.87mm) | Detailed Description | PC Pin Terminal Connector Through Hole Gold 0.062" (1.57mm) Dia |
| Contact Material | Brass Alloy | Contact Finish Thickness | 10.0µin (0.25µm) |
| Contact Finish | Gold | Board Thickness | - |
