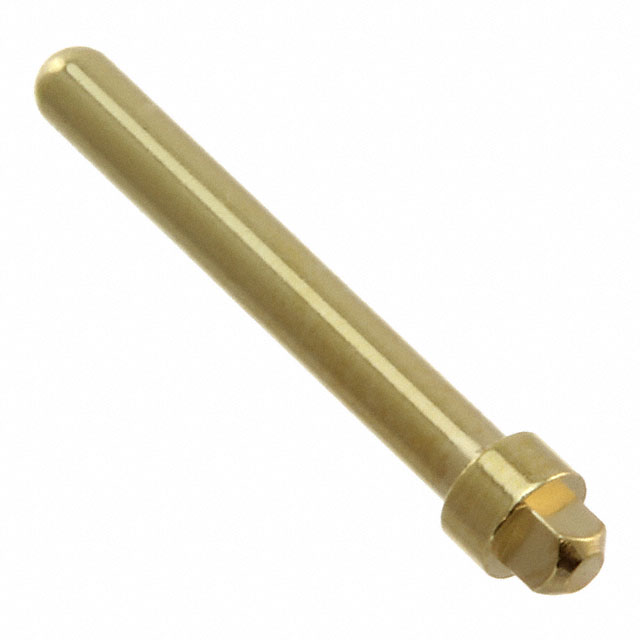

5920-0-00-15-00-00-03-0
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 5920-0-00-15-00-00-03-0 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 5920-0-00-15-00-00-03-0 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 5920-0-00-15-00-00-03-0 |
|---|---|
| Manufacturer | Mill-Max |
| Description | CONN PC PIN 0.080DIA GOLD |
| Lead Free Status / RoHS Status |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.223 | $0.209 | $0.188 | $0.167 | $0.16 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.146 | $0.139 | $0.115 | $0.104 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 5920-0-00-15-00-00-03-0 | Manufacturer | Mill-Max |
|---|---|---|---|
| Description | CONN PC PIN 0.080DIA GOLD | Lead Free Status / RoHS Status | |
| Quantity Available | 187140 pcs | Data sheet | Printed Circuit Pins (metric)Printed Circuit Pins (in) |
| Category | Connectors, Interconnects | Termination | Press-Fit |
| Terminal Type | PC Pin | Terminal Style | Flanged |
| Series | 5920 | Pin Size - Below Flange | 0.085" (2.16mm) Dia |
| Pin Size - Above Flange | 0.080" (2.03mm) Dia | Packaging | Bulk |
| Other Names | ED10969 | Mounting Type | Through Hole |
| Mounting Hole Diameter | 0.086" (2.18mm) | Material - Insulation | - |
| Manufacturer Standard Lead Time | 5 Weeks | Length - Overall | 0.713" (18.10mm) |
| Length - Below Flange | 0.063" (1.60mm) | Length - Above Flange | 0.591" (15.01mm) |
| Insulation Color | - | Insulation | Non-Insulated |
| Flange Diameter | 0.118" (3.00mm) | Detailed Description | PC Pin Terminal Connector Through Hole Gold 0.080" (2.03mm) Dia |
| Contact Material | Brass Alloy | Contact Finish Thickness | 10.0µin (0.25µm) |
| Contact Finish | Gold | Board Thickness | - |
