5275-1-05-15-00-00-01-0

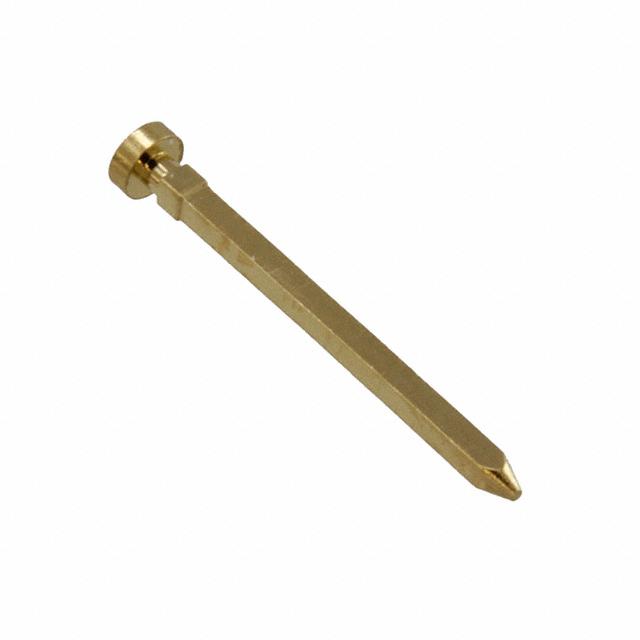

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 5275-1-05-15-00-00-01-0 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 5275-1-05-15-00-00-01-0 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 5275-1-05-15-00-00-01-0 |
|---|---|
| Manufacturer | Mill-Max |
| Description | CONN PC PIN SQUARE 0.025 GOLD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.092 | $0.088 | $0.075 | $0.064 | $0.061 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.055 | $0.053 | $0.044 | $0.04 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 5275-1-05-15-00-00-01-0 | Manufacturer | Mill-Max |
|---|---|---|---|
| Description | CONN PC PIN SQUARE 0.025 GOLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 499684 pcs | Data sheet | Wrapost Terminals (metric)Wrapost Terminals (in.) |
| Category | Connectors, Interconnects | Termination | Press-Fit, Square, Wire Wrap |
| Terminal Type | PC Pin | Terminal Style | Single End |
| Series | 5275 | Pin Size - Below Flange | - |
| Pin Size - Above Flange | 0.025" (0.64mm) Square | Packaging | Bulk |
| Other Names | 5275-105150000010 5275-105150000010-ND 5275105150000010 ED1281 |
Mounting Type | Through Hole |
| Mounting Hole Diameter | 0.035" (0.89mm) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Insulation | - | Manufacturer Standard Lead Time | 5 Weeks |
| Length - Overall | 0.440" (11.18mm) | Length - Below Flange | - |
| Length - Above Flange | 0.420" (10.67mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Color | - | Insulation | Non-Insulated |
| Flange Diameter | 0.060" (1.52mm) | Detailed Description | PC Pin Terminal Connector Through Hole Gold 0.025" (0.64mm) Square |
| Contact Material | Brass Alloy | Contact Finish Thickness | 10.0µin (0.25µm) |
| Contact Finish | Gold | Board Thickness | - |
