5005-0-00-34-00-00-03-0

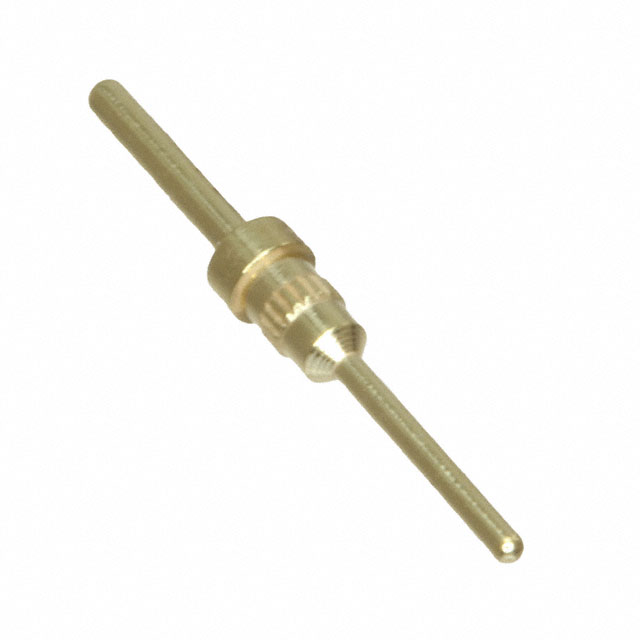

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 5005-0-00-34-00-00-03-0 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 5005-0-00-34-00-00-03-0 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 5005-0-00-34-00-00-03-0 |
|---|---|
| Manufacturer | Mill-Max |
| Description | PRINT CIRC PN .030 DIA PRES FIT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 5 pcs | 10 pcs | 25 pcs | 50 pcs |
|---|---|---|---|---|---|
| $0.473 | $0.393 | $0.353 | $0.314 | $0.283 | |
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $0.275 | $0.267 | $0.259 | $0.236 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 5005-0-00-34-00-00-03-0 | Manufacturer | Mill-Max |
|---|---|---|---|
| Description | PRINT CIRC PN .030 DIA PRES FIT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 96805 pcs | Data sheet | Printed Circuit Pins (metric)Printed Circuit Pins (in.) |
| Category | Connectors, Interconnects | Termination | Press-Fit, Knurled |
| Terminal Type | PC Pin | Terminal Style | Double End |
| Series | 5005 | Pin Size - Below Flange | 0.024" (0.61mm) Dia |
| Pin Size - Above Flange | 0.030" (0.76mm) Dia | Packaging | Bulk |
| Other Names | 5005-000340000030 5005-000340000030-ND 5005000340000030 ED11507 Q1144008 |
Mounting Type | Through Hole |
| Mounting Hole Diameter | 0.057" (1.45mm) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Insulation | - | Manufacturer Standard Lead Time | 5 Weeks |
| Length - Overall | 0.530" (13.46mm) | Length - Below Flange | 0.302" (7.67mm) |
| Length - Above Flange | 0.195" (4.95mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Color | - | Insulation | Non-Insulated |
| Flange Diameter | 0.072" (1.83mm) | Detailed Description | PC Pin Terminal Connector Through Hole Gold 0.030" (0.76mm) Dia |
| Contact Material | Brass Alloy | Contact Finish Thickness | 50.0µin (1.27µm) |
| Contact Finish | Gold | Board Thickness | - |
