4582-0-15-15-23-27-10-0

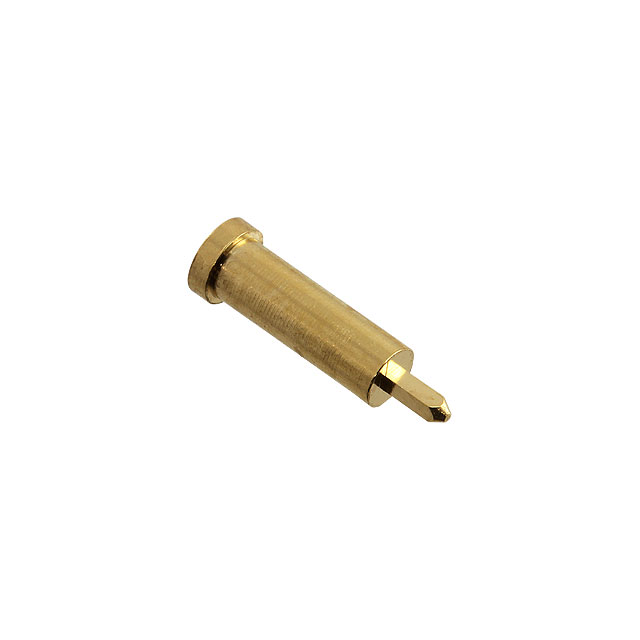

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 4582-0-15-15-23-27-10-0 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 4582-0-15-15-23-27-10-0 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 4582-0-15-15-23-27-10-0 |
|---|---|
| Manufacturer | Mill-Max |
| Description | CONN PIN RCPT .045-.065 PRESSFIT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.28 | $0.247 | $0.232 | $0.223 | $0.213 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.194 | $0.174 | $0.155 | $0.14 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 4582-0-15-15-23-27-10-0 | Manufacturer | Mill-Max |
|---|---|---|---|
| Description | CONN PIN RCPT .045-.065 PRESSFIT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 137535 pcs | Data sheet | Pin Receptacles (in.)Pin Receptacles (metric) |
| Category | Connectors, Interconnects | Termination | Press-Fit |
| Tail Type | Standard Tail | Tail Diameter | 0.032" (0.81mm) Square |
| Socket Depth | 0.270" (6.86mm) | Series | 4582 |
| Pin Hole Diameter | 0.088" (2.24mm) | Packaging | Bulk |
| Other Names | 4582-015152327100 4582-015152327100-ND 4582015152327100 ED1181 |
Operating Temperature | -55°C ~ 125°C |
| Mounting Hole Diameter | 0.040" (1.02mm) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 5 Weeks | Length - Overall | 0.435" (11.05mm) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insertion Force | - |
| Flange Diameter | 0.125" (3.18mm) | Features | - |
| Detailed Description | Pin Receptacle Connector 0.045" ~ 0.065" (1.14mm ~ 1.65mm) Standard Tail Press-Fit | Contact Material | Beryllium Copper |
| Contact Finish Thickness | 30.0µin (0.76µm) | Contact Finish | Gold |
| Board Thickness | - | Accepts Square Pin Size | - |
| Accepts Pin Diameter | 0.045" ~ 0.065" (1.14mm ~ 1.65mm) |
