4541-0-00-15-00-00-03-0

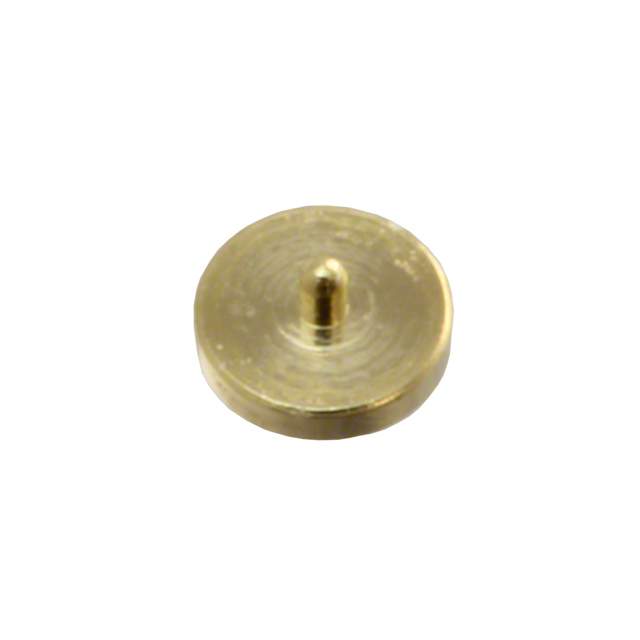

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 4541-0-00-15-00-00-03-0 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 4541-0-00-15-00-00-03-0 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 4541-0-00-15-00-00-03-0 |
|---|---|
| Manufacturer | Mill-Max |
| Description | NAIL HEAD PIN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.061 | $0.056 | $0.042 | $0.036 | $0.034 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.03 | $0.029 | $0.025 | $0.023 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 4541-0-00-15-00-00-03-0 | Manufacturer | Mill-Max |
|---|---|---|---|
| Description | NAIL HEAD PIN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 1021792 pcs | Data sheet | Male PCB Pins (metric)Male PCB Pins (in.) |
| Category | Connectors, Interconnects | Termination | Solder |
| Terminal Type | PC Pin | Terminal Style | Single End, Nail Head |
| Series | 4541 | Pin Size - Below Flange | - |
| Pin Size - Above Flange | 0.018" (0.46mm) Dia | Packaging | Bulk |
| Other Names | ED10767 | Mounting Type | Through Hole |
| Mounting Hole Diameter | 0.022" (0.56mm) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Insulation | - | Manufacturer Standard Lead Time | 5 Weeks |
| Length - Overall | 0.049" (1.24mm) | Length - Below Flange | - |
| Length - Above Flange | 0.029" (0.74mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Color | - | Insulation | Non-Insulated |
| Flange Diameter | 0.098" (2.49mm) | Detailed Description | PC Pin Terminal Connector Through Hole Gold 0.018" (0.46mm) Dia |
| Contact Material | Brass Alloy | Contact Finish Thickness | 10.0µin (0.25µm) |
| Contact Finish | Gold | Board Thickness | - |
