3977-0-00-15-00-00-03-0

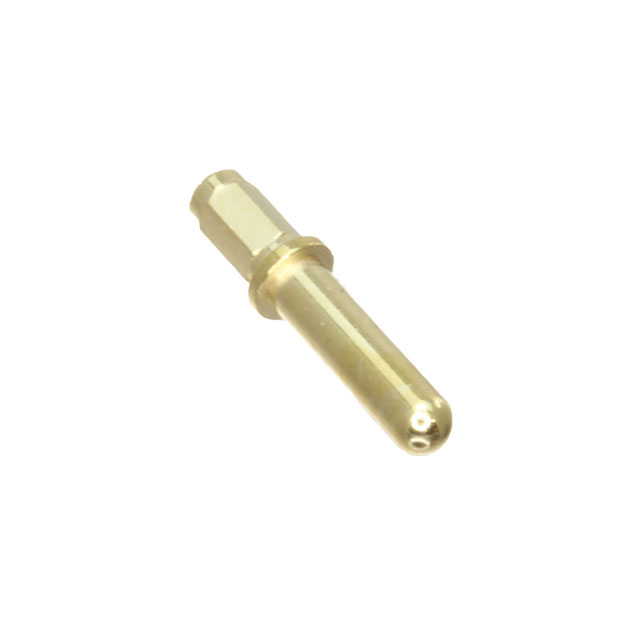

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 3977-0-00-15-00-00-03-0 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 3977-0-00-15-00-00-03-0 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 3977-0-00-15-00-00-03-0 |
|---|---|
| Manufacturer | Mill-Max |
| Description | PRESS-FIT PCB PIN |
| Lead Free Status / RoHS Status |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.112 | $0.105 | $0.09 | $0.076 | $0.073 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.066 | $0.063 | $0.052 | $0.048 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 3977-0-00-15-00-00-03-0 | Manufacturer | Mill-Max |
|---|---|---|---|
| Description | PRESS-FIT PCB PIN | Lead Free Status / RoHS Status | |
| Quantity Available | 437886 pcs | Data sheet | Male PCB Pins (in)Male PCB Pins (metric) |
| Category | Connectors, Interconnects | Termination | Press-Fit |
| Terminal Type | PC Pin | Terminal Style | Single End |
| Series | 3977 | Pin Size - Below Flange | 0.062" (1.58mm) Dia |
| Pin Size - Above Flange | 0.062" (1.57mm) Dia | Packaging | Bulk |
| Other Names | ED10389 | Mounting Type | Through Hole |
| Mounting Hole Diameter | 0.070" (1.78mm) | Moisture Sensitivity Level (MSL) | Not Applicable |
| Material - Insulation | - | Manufacturer Standard Lead Time | 5 Weeks |
| Length - Overall | 0.375" (9.53mm) | Length - Below Flange | 0.125" (3.18mm) |
| Length - Above Flange | 0.235" (5.97mm) | Insulation Color | - |
| Insulation | Non-Insulated | Flange Diameter | 0.093" (2.36mm) |
| Detailed Description | PC Pin Terminal Connector Through Hole Gold 0.062" (1.57mm) Dia | Contact Material | Brass Alloy |
| Contact Finish Thickness | 10.0µin (0.25µm) | Contact Finish | Gold |
| Board Thickness | - |
