3914-0-01-15-00-00-08-0

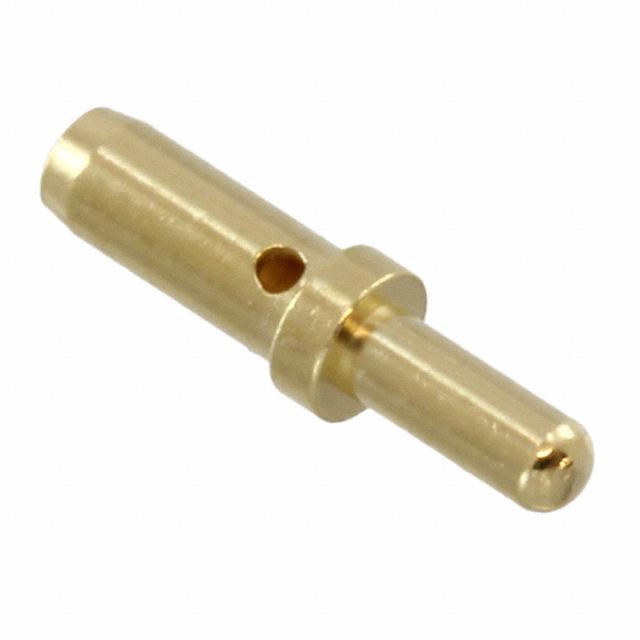

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 3914-0-01-15-00-00-08-0 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 3914-0-01-15-00-00-08-0 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 3914-0-01-15-00-00-08-0 |
|---|---|
| Manufacturer | Mill-Max |
| Description | CONN PC PIN CIRC 0.077DIA GOLD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.205 | $0.194 | $0.174 | $0.155 | $0.149 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.136 | $0.129 | $0.107 | $0.097 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 3914-0-01-15-00-00-08-0 | Manufacturer | Mill-Max |
|---|---|---|---|
| Description | CONN PC PIN CIRC 0.077DIA GOLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 223043 pcs | Data sheet | 39xx-x-01-xx-00-00-08-0 (in.)39xx-x-01-xx-00-00-08-0 (metric) |
| Category | Connectors, Interconnects | Termination | Crimp |
| Terminal Type | PC Pin | Terminal Style | Wire |
| Series | 3914 | Pin Size - Below Flange | 0.103" (2.62mm) Dia |
| Pin Size - Above Flange | 0.077" (1.96mm) Dia | Packaging | Bulk |
| Other Names | 3920001150000080 ED1319 |
Mounting Type | Free Hanging (In-Line) |
| Mounting Hole Diameter | - | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Insulation | - | Manufacturer Standard Lead Time | 5 Weeks |
| Length - Overall | 0.501" (12.73mm) | Length - Below Flange | 0.250" (6.35mm) |
| Length - Above Flange | 0.205" (5.21mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Color | - | Insulation | Non-Insulated |
| Flange Diameter | 0.131" (3.33mm) | Detailed Description | PC Pin Terminal Connector Free Hanging (In-Line) Gold 0.077" (1.96mm) Dia |
| Contact Material | Brass Alloy | Contact Finish Thickness | 10.0µin (0.25µm) |
| Contact Finish | Gold | Board Thickness | - |
