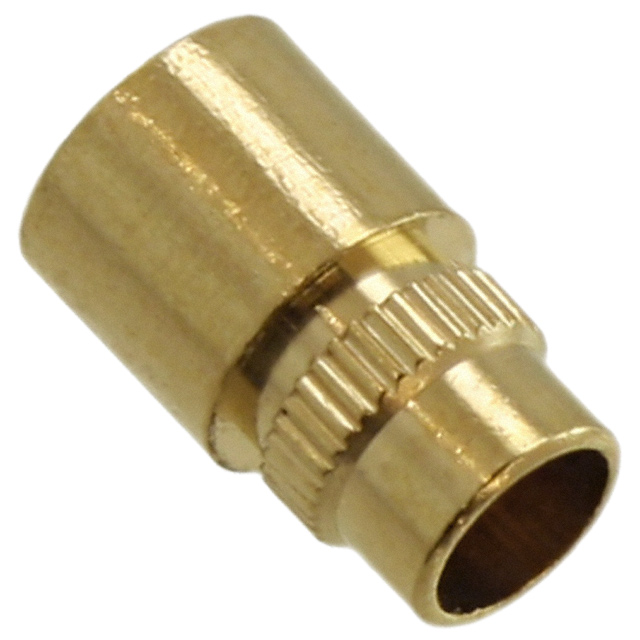

3808-0-15-15-02-27-10-0
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 3808-0-15-15-02-27-10-0 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 3808-0-15-15-02-27-10-0 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 3808-0-15-15-02-27-10-0 |
|---|---|
| Manufacturer | Mill-Max |
| Description | CONN PIN RCPT .040-.050 KNURL |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.249 | $0.235 | $0.211 | $0.188 | $0.18 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.164 | $0.156 | $0.129 | $0.117 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 3808-0-15-15-02-27-10-0 | Manufacturer | Mill-Max |
|---|---|---|---|
| Description | CONN PIN RCPT .040-.050 KNURL | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 163098 pcs | Data sheet | Pin Receptacles (in.)Pin Receptacles (metric) |
| Category | Connectors, Interconnects | Termination | Press-Fit, Knurled |
| Tail Type | No Tail | Tail Diameter | - |
| Socket Depth | 0.175" (4.45mm) | Series | 3808 |
| Pin Hole Diameter | 0.068" (1.73mm) | Packaging | Bulk |
| Other Names | 3808-015150227100 3808-015150227100-ND 3808015150227100 ED1246 |
Operating Temperature | -55°C ~ 125°C |
| Mounting Hole Diameter | 0.090" (2.29mm) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 5 Weeks | Length - Overall | 0.175" (4.45mm) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insertion Force | - |
| Flange Diameter | 0.105" (2.67mm) | Features | - |
| Detailed Description | Pin Receptacle Connector 0.040" ~ 0.050" (1.02mm ~ 1.27mm) No Tail Press-Fit, Knurled | Contact Material | Beryllium Copper |
| Contact Finish Thickness | 30.0µin (0.76µm) | Contact Finish | Gold |
| Board Thickness | - | Accepts Square Pin Size | - |
| Accepts Pin Diameter | 0.040" ~ 0.050" (1.02mm ~ 1.27mm) |
