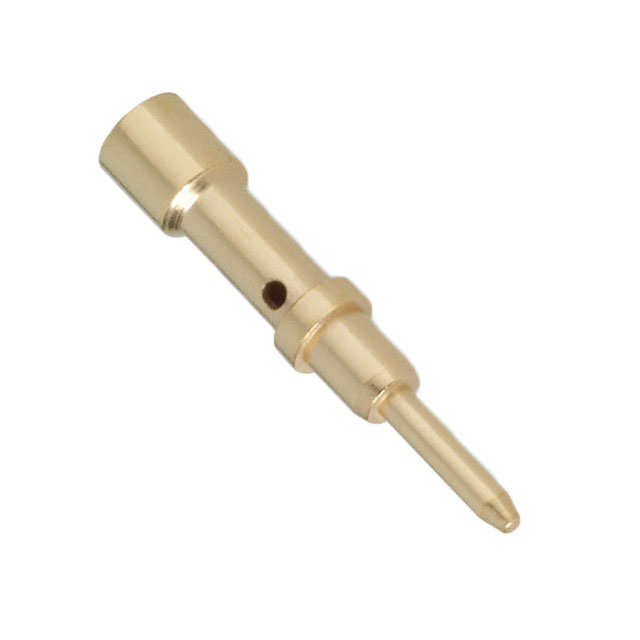

3603-0-07-21-00-00-08-0
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 3603-0-07-21-00-00-08-0 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 3603-0-07-21-00-00-08-0 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 3603-0-07-21-00-00-08-0 |
|---|---|
| Manufacturer | Mill-Max |
| Description | CONN PC PIN CIRC 0.040DIA GOLD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.298 | $0.261 | $0.245 | $0.235 | $0.225 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.204 | $0.184 | $0.163 | $0.148 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 3603-0-07-21-00-00-08-0 | Manufacturer | Mill-Max |
|---|---|---|---|
| Description | CONN PC PIN CIRC 0.040DIA GOLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 152446 pcs | Data sheet | Printed Circuit Pins (in.) |
| Category | Connectors, Interconnects | Termination | Crimp |
| Terminal Type | PC Pin | Terminal Style | Wire |
| Series | 3603 | Pin Size - Below Flange | - |
| Pin Size - Above Flange | 0.040" (1.02mm) Dia | Packaging | Bulk |
| Other Names | 3.60301E+15 3603-0-07-21-00-00-0 3603-0-07-21-0000080 3603007210000080 ED5061 |
Mounting Type | Free Hanging (In-Line) |
| Mounting Hole Diameter | - | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Insulation | - | Manufacturer Standard Lead Time | 5 Weeks |
| Length - Overall | 0.588" (14.94mm) | Length - Below Flange | 0.275" (6.99mm) |
| Length - Above Flange | 0.282" (7.16mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Color | - | Insulation | Non-Insulated |
| Flange Diameter | 0.102" (2.59mm) | Detailed Description | PC Pin Terminal Connector Free Hanging (In-Line) Gold 0.040" (1.02mm) Dia |
| Contact Material | Brass Alloy | Contact Finish Thickness | 20.0µin (0.51µm) |
| Contact Finish | Gold | Board Thickness | - |
