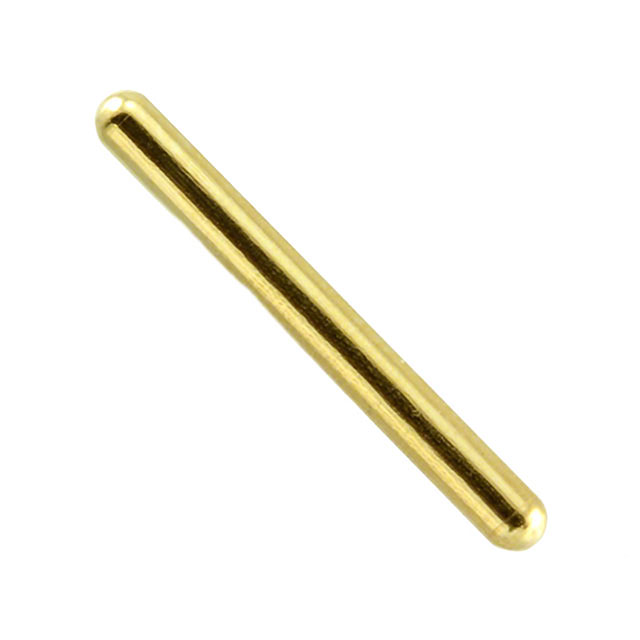

3580-2-00-15-00-00-03-0
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 3580-2-00-15-00-00-03-0 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 3580-2-00-15-00-00-03-0 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 3580-2-00-15-00-00-03-0 |
|---|---|
| Manufacturer | Mill-Max |
| Description | .080" DIAMETER STRAIGHT PINS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.266 | $0.251 | $0.226 | $0.201 | $0.192 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.176 | $0.167 | $0.138 | $0.125 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 3580-2-00-15-00-00-03-0 | Manufacturer | Mill-Max |
|---|---|---|---|
| Description | .080" DIAMETER STRAIGHT PINS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 151397 pcs | Data sheet | Male PCB Pins (in.)Male PCB Pins (metric) |
| Category | Connectors, Interconnects | Termination | Solder |
| Terminal Type | Single Post | Terminal Style | Smooth |
| Series | 3580 | Pin Size - Below Flange | 0.080" (2.03mm) Dia |
| Pin Size - Above Flange | 0.080" (2.03mm) Dia | Packaging | Bulk |
| Other Names | ED10070 | Mounting Type | Through Hole |
| Mounting Hole Diameter | - | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Insulation | - | Manufacturer Standard Lead Time | 5 Weeks |
| Length - Overall | 0.750" (19.00mm) | Length - Below Flange | - |
| Length - Above Flange | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Color | - | Insulation | Non-Insulated |
| Flange Diameter | - | Detailed Description | Single Post Terminal Connector Through Hole Gold 0.080" (2.03mm) Dia |
| Contact Material | Brass Alloy | Contact Finish Thickness | 10.0µin (0.25µm) |
| Contact Finish | Gold | Board Thickness | - |
