3520-0-15-15-18-27-10-0

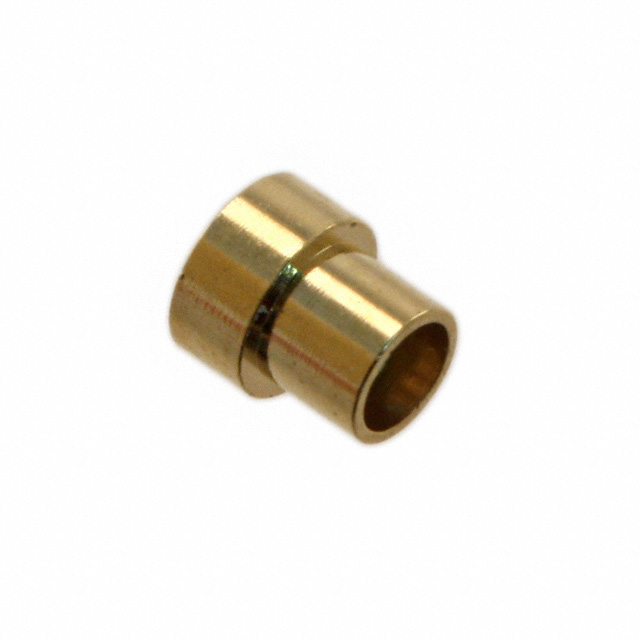

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 3520-0-15-15-18-27-10-0 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 3520-0-15-15-18-27-10-0 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 3520-0-15-15-18-27-10-0 |
|---|---|
| Manufacturer | Mill-Max |
| Description | CONN PIN RCPT .037-.043 SOLDER |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.152 | $0.143 | $0.129 | $0.115 | $0.11 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.10 | $0.096 | $0.079 | $0.072 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 3520-0-15-15-18-27-10-0 | Manufacturer | Mill-Max |
|---|---|---|---|
| Description | CONN PIN RCPT .037-.043 SOLDER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 323221 pcs | Data sheet | Pin Receptacles (metric)Pin Receptacles (in.) |
| Category | Connectors, Interconnects | Termination | Solder |
| Tail Type | No Tail | Tail Diameter | - |
| Socket Depth | 0.095" (2.41mm) | Series | 3520 |
| Pin Hole Diameter | 0.054" (1.37mm) | Packaging | Bulk |
| Other Names | 3520015151827100 ED90327 |
Operating Temperature | -55°C ~ 125°C |
| Mounting Hole Diameter | 0.070" (1.78mm) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 5 Weeks | Length - Overall | 0.095" (2.41mm) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insertion Force | - |
| Flange Diameter | 0.088" (2.24mm) | Features | - |
| Detailed Description | Pin Receptacle Connector 0.037" ~ 0.043" (0.94mm ~ 1.09mm) No Tail Solder | Contact Material | Beryllium Copper |
| Contact Finish Thickness | 30.0µin (0.76µm) | Contact Finish | Gold |
| Board Thickness | - | Accepts Square Pin Size | - |
| Accepts Pin Diameter | 0.037" ~ 0.043" (0.94mm ~ 1.09mm) |
