317-47-116-41-005000

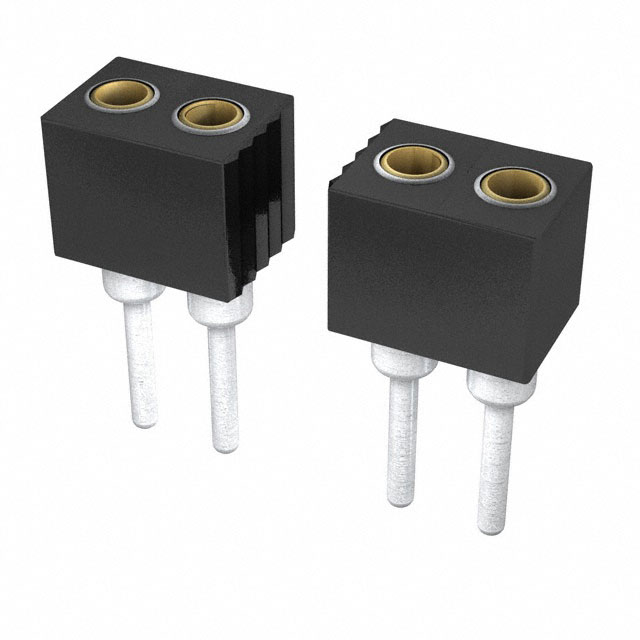

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 317-47-116-41-005000 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 317-47-116-41-005000 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 317-47-116-41-005000 |
|---|---|
| Manufacturer | Mill-Max |
| Description | CONN SOCKET SIP 16POS GOLD |
| Lead Free Status / RoHS Status |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.531 | $0.483 | $0.453 | $0.433 | $0.414 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.374 | $0.345 | $0.295 | $0.276 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 317-47-116-41-005000 | Manufacturer | Mill-Max |
|---|---|---|---|
| Description | CONN SOCKET SIP 16POS GOLD | Lead Free Status / RoHS Status | |
| Quantity Available | 84644 pcs | Data sheet | 117, 127, 217, 227, 317, 327 Series (metric)117, 127, 217, 227, 317, 327 Series (in.) |
| Category | Connectors, Interconnects | Type | SIP |
| Termination Post Length | 0.125" (3.18mm) | Termination | Solder |
| Series | 317 | Pitch - Post | 0.070" (1.78mm) |
| Pitch - Mating | 0.070" (1.78mm) | Packaging | Tube |
| Other Names | ED11193 | Operating Temperature | -55°C ~ 125°C |
| Number of Positions or Pins (Grid) | 16 (1 x 16) | Mounting Type | Through Hole |
| Material Flammability Rating | - | Manufacturer Standard Lead Time | 4 Weeks |
| Housing Material | Polycyclohexylenedimethylene Terephthalate (PCT), Polyester | Features | - |
| Current Rating | 3A | Contact Resistance | - |
| Contact Material - Post | Brass Alloy | Contact Material - Mating | Beryllium Copper |
| Contact Finish Thickness - Post | 200.0µin (5.08µm) | Contact Finish Thickness - Mating | Flash |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
