3169-0-00-15-00-00-03-0

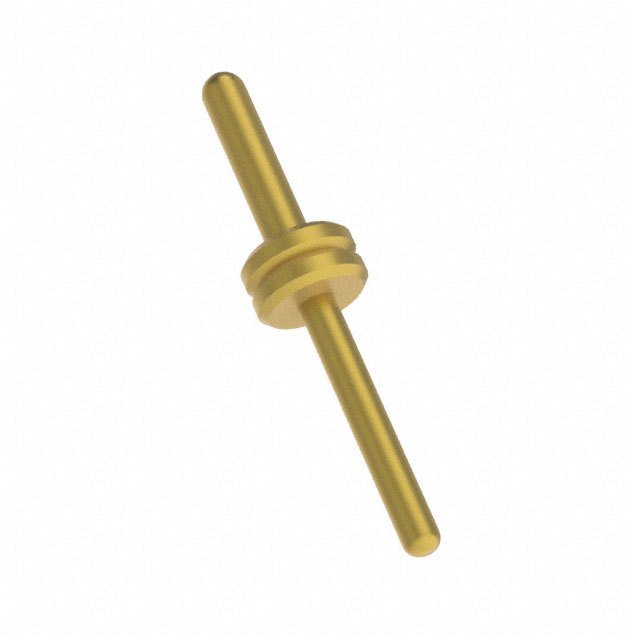

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 3169-0-00-15-00-00-03-0 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 3169-0-00-15-00-00-03-0 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 3169-0-00-15-00-00-03-0 |
|---|---|
| Manufacturer | Mill-Max |
| Description | DOUBLE TAIL HEADER PIN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.233 | $0.218 | $0.197 | $0.175 | $0.167 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.153 | $0.146 | $0.12 | $0.109 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 3169-0-00-15-00-00-03-0 | Manufacturer | Mill-Max |
|---|---|---|---|
| Description | DOUBLE TAIL HEADER PIN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 180871 pcs | Data sheet | Printed Circuit Pins Series (metric)Printed Circuit Pins Series (in) |
| Category | Connectors, Interconnects | Termination | Solder |
| Terminal Type | PC Pin | Terminal Style | Double End |
| Series | 3169 | Pin Size - Below Flange | 0.018" (0.46mm) Dia |
| Pin Size - Above Flange | 0.022" (0.56mm) Dia | Packaging | Bulk |
| Other Names | 3169-0-00-15-00-00-03-0-ND ED11422 |
Mounting Type | Through Hole |
| Mounting Hole Diameter | - | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Insulation | - | Manufacturer Standard Lead Time | 5 Weeks |
| Length - Overall | 0.262" (6.65mm) | Length - Below Flange | 0.132" (3.35mm) |
| Length - Above Flange | 0.100" (2.54mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Color | - | Insulation | Non-Insulated |
| Flange Diameter | 0.056" (1.42mm) | Detailed Description | PC Pin Terminal Connector Through Hole Gold 0.022" (0.56mm) Dia |
| Contact Material | Brass Alloy | Contact Finish Thickness | 10.0µin (0.25µm) |
| Contact Finish | Gold | Board Thickness | - |
