316-47-102-41-001000

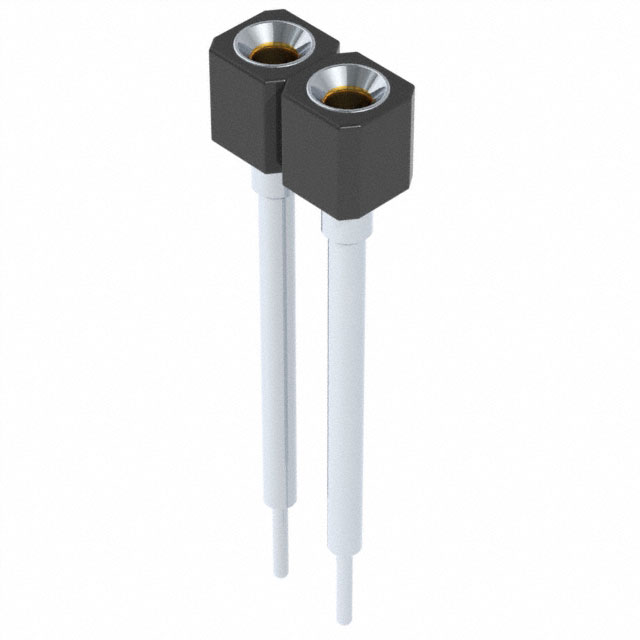

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 316-47-102-41-001000 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 316-47-102-41-001000 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 316-47-102-41-001000 |
|---|---|
| Manufacturer | Mill-Max |
| Description | CONN SOCKET SIP 2POS GOLD |
| Lead Free Status / RoHS Status |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.219 | $0.206 | $0.185 | $0.165 | $0.158 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.144 | $0.137 | $0.113 | $0.103 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 316-47-102-41-001000 | Manufacturer | Mill-Max |
|---|---|---|---|
| Description | CONN SOCKET SIP 2POS GOLD | Lead Free Status / RoHS Status | |
| Quantity Available | 227073 pcs | Data sheet | 316 Series (in.)316 Series (metric) |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board |
| Series | 316 | Row Spacing - Mating | - |
| Pitch - Mating | 0.100" (2.54mm) | Packaging | Bulk |
| Other Names | ED11184 | Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 2 | Mounting Type | Through Hole |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 4 Weeks | Insulation Material | Polycyclohexylenedimethylene Terephthalate (PCT), Polyester |
| Insulation Height | 0.594" (15.09mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | 2 Position Elevated Socket Connector Through Hole |
| Current Rating | 3A | Contact Type | Female Socket |
| Contact Shape | Circular | Contact Material | Beryllium Copper |
| Contact Length - Post | 0.118" (3.00mm) | Contact Finish Thickness - Post | 200.0µin (5.08µm) |
| Contact Finish Thickness - Mating | Flash | Contact Finish - Post | Tin |
| Contact Finish - Mating | Gold | Connector Type | Elevated Socket |
| Applications | - |
