315-47-101-41-001000

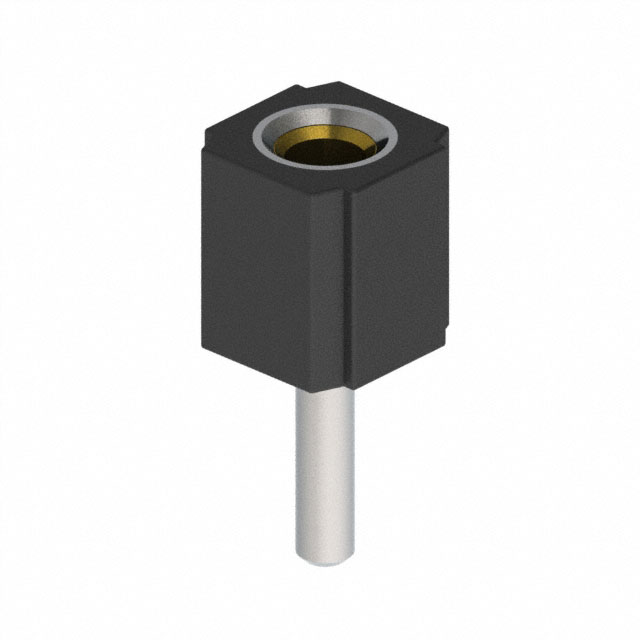

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 315-47-101-41-001000 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 315-47-101-41-001000 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 315-47-101-41-001000 |
|---|---|
| Manufacturer | Mill-Max |
| Description | CONN SOCKET SIP 1POS GOLD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.104 | $0.10 | $0.085 | $0.073 | $0.07 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.063 | $0.06 | $0.05 | $0.046 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 315-47-101-41-001000 | Manufacturer | Mill-Max |
|---|---|---|---|
| Description | CONN SOCKET SIP 1POS GOLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 530667 pcs | Data sheet | 310, 311, 315 Series (metric)310, 311, 315 Series (in.) |
| Category | Connectors, Interconnects | Voltage Rating | 100V, 150VDC |
| Termination | Solder | Style | Board to Board |
| Series | 315 | Row Spacing - Mating | - |
| Pitch - Mating | - | Packaging | Bulk |
| Other Names | ED11173 | Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 1 | Mounting Type | Through Hole |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 4 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polycyclohexylenedimethylene Terephthalate (PCT), Polyester | Insulation Height | 0.110" (2.79mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | - | Fastening Type | Push-Pull |
| Detailed Description | 1 Position Receptacle Connector Through Hole | Current Rating | 3A |
| Contact Type | Female Socket | Contact Shape | Circular |
| Contact Material | Beryllium Copper | Contact Length - Post | 0.108" (2.75mm) |
| Contact Finish Thickness - Post | 200.0µin (5.08µm) | Contact Finish Thickness - Mating | Flash |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Receptacle | Applications | - |
