3137-1-00-15-00-00-08-0

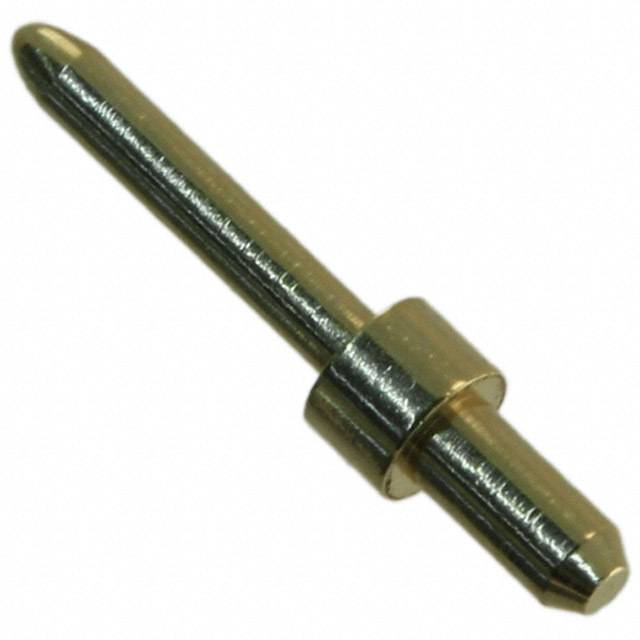

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 3137-1-00-15-00-00-08-0 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 3137-1-00-15-00-00-08-0 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 3137-1-00-15-00-00-08-0 |
|---|---|
| Manufacturer | Mill-Max |
| Description | CONN PC PIN CIRC 0.040DIA GOLD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.064 | $0.059 | $0.051 | $0.044 | $0.041 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.036 | $0.035 | $0.028 | $0.026 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 3137-1-00-15-00-00-08-0 | Manufacturer | Mill-Max |
|---|---|---|---|
| Description | CONN PC PIN CIRC 0.040DIA GOLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 891424 pcs | Data sheet | Printed Circuit Pins (in.) |
| Category | Connectors, Interconnects | Termination | Solder |
| Terminal Type | PC Pin | Terminal Style | Double End |
| Series | 3137 | Pin Size - Below Flange | 0.030" (0.76mm) Dia |
| Pin Size - Above Flange | 0.040" (1.02mm) Dia | Packaging | Bulk |
| Other Names | 3137-100150000080 3137-100150000080-ND 3137100150000080 ED1083 |
Mounting Type | Through Hole |
| Mounting Hole Diameter | 0.043" (1.09mm) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Insulation | - | Manufacturer Standard Lead Time | 5 Weeks |
| Length - Overall | 0.302" (7.67mm) | Length - Below Flange | 0.180" (4.57mm) |
| Length - Above Flange | 0.082" (2.08mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Color | - | Insulation | Non-Insulated |
| Flange Diameter | 0.062" (1.57mm) | Detailed Description | PC Pin Terminal Connector Through Hole Gold 0.040" (1.02mm) Dia |
| Contact Material | Brass Alloy | Contact Finish Thickness | 10.0µin (0.25µm) |
| Contact Finish | Gold | Board Thickness | 0.062" (1.57mm) |
