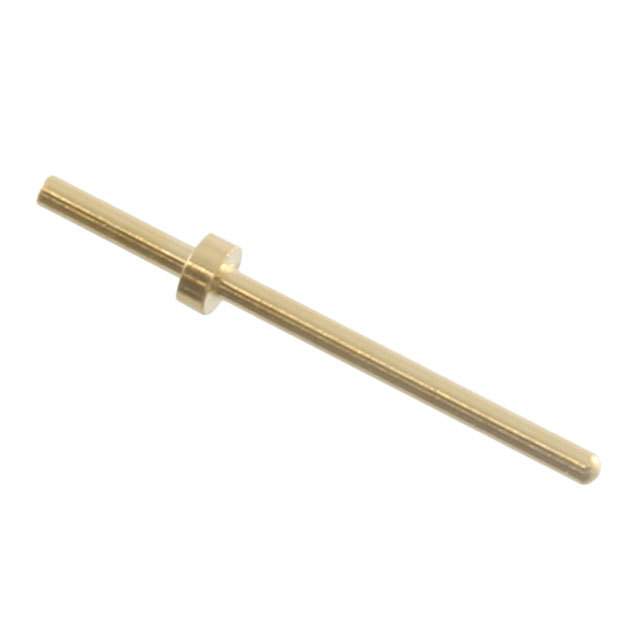

3128-1-00-15-00-00-08-0
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 3128-1-00-15-00-00-08-0 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 3128-1-00-15-00-00-08-0 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 3128-1-00-15-00-00-08-0 |
|---|---|
| Manufacturer | Mill-Max |
| Description | CONN PC PIN CIRC 0.020DIA GOLD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.066 | $0.063 | $0.047 | $0.04 | $0.039 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.034 | $0.032 | $0.028 | $0.026 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 3128-1-00-15-00-00-08-0 | Manufacturer | Mill-Max |
|---|---|---|---|
| Description | CONN PC PIN CIRC 0.020DIA GOLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 871620 pcs | Data sheet | Printed Circuit Pins (in.)Printed Circuit Pins (metric) |
| Category | Connectors, Interconnects | Termination | Solder |
| Terminal Type | PC Pin | Terminal Style | Single End |
| Series | 3128 | Pin Size - Below Flange | 0.020" (0.51mm) Dia |
| Pin Size - Above Flange | 0.020" (0.51mm) Dia | Packaging | Bulk |
| Other Names | 3.1281E+15 3128-100150000080 3128-100150000080-ND 3128100150000080 ED90539 |
Mounting Type | Through Hole |
| Mounting Hole Diameter | 0.024" (0.61mm) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Insulation | - | Manufacturer Standard Lead Time | 5 Weeks |
| Length - Overall | 0.370" (9.40mm) | Length - Below Flange | 0.100" (2.54mm) |
| Length - Above Flange | 0.250" (6.35mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Color | - | Insulation | Non-Insulated |
| Flange Diameter | 0.046" (1.17mm) | Detailed Description | PC Pin Terminal Connector Through Hole Gold 0.020" (0.51mm) Dia |
| Contact Material | Brass Alloy | Contact Finish Thickness | 10.0µin (0.25µm) |
| Contact Finish | Gold | Board Thickness | - |
