3121-2-00-15-00-00-08-0

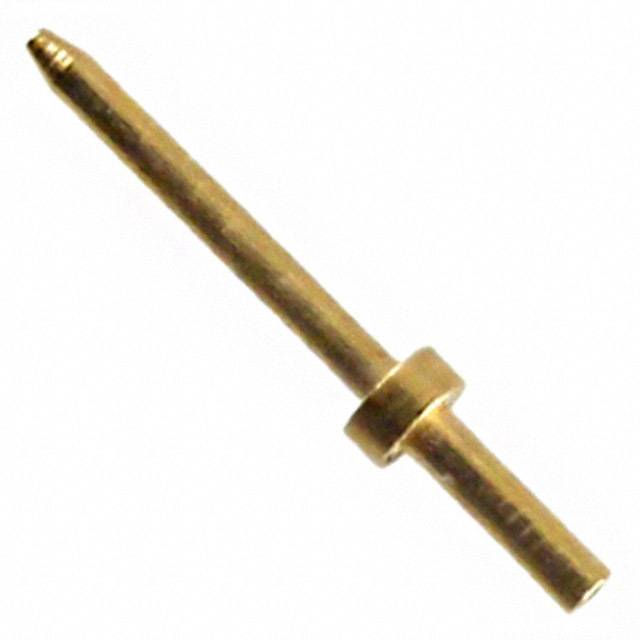

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 3121-2-00-15-00-00-08-0 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 3121-2-00-15-00-00-08-0 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 3121-2-00-15-00-00-08-0 |
|---|---|
| Manufacturer | Mill-Max |
| Description | CONN PC PIN CIRC 0.017DIA GOLD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.06 | $0.055 | $0.041 | $0.035 | $0.034 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.029 | $0.028 | $0.025 | $0.022 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 3121-2-00-15-00-00-08-0 | Manufacturer | Mill-Max |
|---|---|---|---|
| Description | CONN PC PIN CIRC 0.017DIA GOLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 1008502 pcs | Data sheet | Printed Circuit Pins (in.)Printed Circuit Pins (metric) |
| Category | Connectors, Interconnects | Termination | Solder |
| Terminal Type | PC Pin | Terminal Style | Single End |
| Series | 3121 | Pin Size - Below Flange | 0.019" (0.48mm) Dia |
| Pin Size - Above Flange | 0.017" (0.43mm) Dia | Packaging | Bulk |
| Other Names | 3.1212E+15 3121-200150000080 3121-200150000080-ND 3121200150000080 ED1081 Q4730225 |
Mounting Type | Through Hole |
| Mounting Hole Diameter | 0.023" (0.58mm) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Insulation | - | Manufacturer Standard Lead Time | 5 Weeks |
| Length - Overall | 0.248" (6.30mm) | Length - Below Flange | 0.075" (1.91mm) |
| Length - Above Flange | 0.157" (3.99mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Color | - | Insulation | Non-Insulated |
| Flange Diameter | 0.040" (1.02mm) | Detailed Description | PC Pin Terminal Connector Through Hole Gold 0.017" (0.43mm) Dia |
| Contact Material | Brass Alloy | Contact Finish Thickness | 10.0µin (0.25µm) |
| Contact Finish | Gold | Board Thickness | 0.040" (1.02mm) |
