3118-2-00-01-00-00-08-0

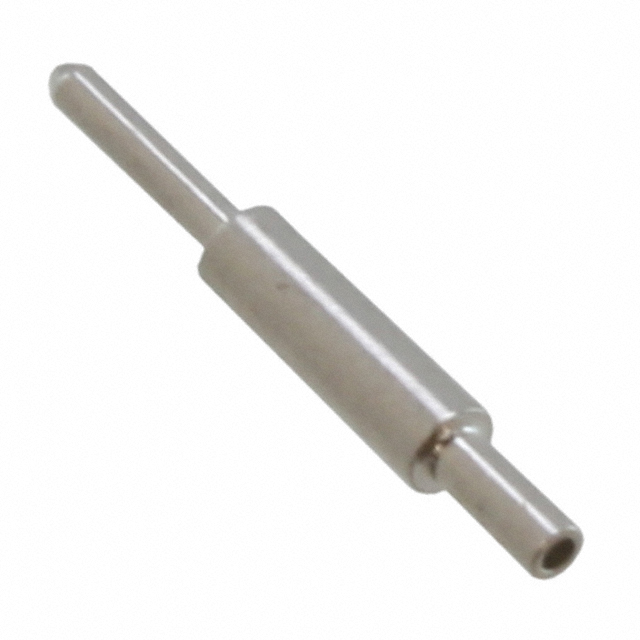

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 3118-2-00-01-00-00-08-0 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 3118-2-00-01-00-00-08-0 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 3118-2-00-01-00-00-08-0 |
|---|---|
| Manufacturer | Mill-Max |
| Description | CONN PC PIN CIRC .025DIA TINLEAD |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $0.308 | $0.271 | $0.255 | $0.245 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $0.234 | $0.213 | $0.191 | $0.17 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 3118-2-00-01-00-00-08-0 | Manufacturer | Mill-Max |
|---|---|---|---|
| Description | CONN PC PIN CIRC .025DIA TINLEAD | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 130295 pcs | Data sheet | Printed Circuit Pins (in.) |
| Category | Connectors, Interconnects | Termination | Swage |
| Terminal Type | PC Pin | Terminal Style | Single End |
| Series | 3118 | Pin Size - Below Flange | - |
| Pin Size - Above Flange | 0.025" (0.64mm) Dia | Packaging | Bulk |
| Other Names | 3118-200010000080 3118200010000080 |
Mounting Type | Through Hole |
| Mounting Hole Diameter | 0.035" (0.89mm) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Insulation | - | Manufacturer Standard Lead Time | 5 Weeks |
| Length - Overall | 0.402" (10.20mm) | Length - Below Flange | 0.082" (2.08mm) |
| Length - Above Flange | 0.150" (3.81mm) | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Insulation Color | - | Insulation | Non-Insulated |
| Flange Diameter | 0.050" (1.27mm) | Detailed Description | PC Pin Terminal Connector Through Hole Tin-Lead 0.025" (0.64mm) Dia |
| Contact Material | Brass Alloy | Contact Finish Thickness | 200.0µin (5.08µm) |
| Contact Finish | Tin-Lead | Board Thickness | 0.062" (1.57mm) |
