302-10-001-00-900800

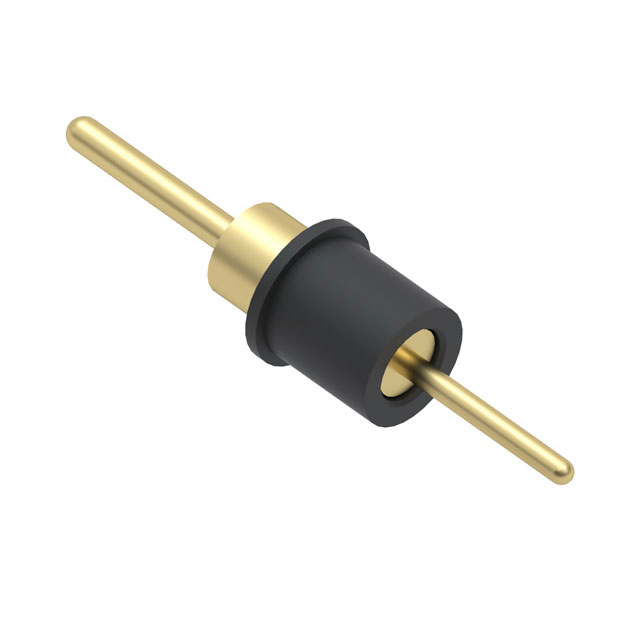

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 302-10-001-00-900800 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 302-10-001-00-900800 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 302-10-001-00-900800 |
|---|---|
| Manufacturer | Mill-Max |
| Description | INSULATED TERMINAL PIN |
| Lead Free Status / RoHS Status |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.167 | $0.156 | $0.134 | $0.114 | $0.109 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.098 | $0.094 | $0.078 | $0.071 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 302-10-001-00-900800 | Manufacturer | Mill-Max |
|---|---|---|---|
| Description | INSULATED TERMINAL PIN | Lead Free Status / RoHS Status | |
| Quantity Available | 279854 pcs | Data sheet | 302,330,370,380 Series (metric)302,330,370,380 Series (in.) |
| Category | Connectors, Interconnects | Termination | Press-Fit |
| Terminal Type | PC Pin | Terminal Style | Double End |
| Series | 302 | Pin Size - Below Flange | 0.018" (0.46mm) Dia |
| Pin Size - Above Flange | 0.025" (0.64mm) Dia | Packaging | Bulk |
| Other Names | ED10991 | Mounting Type | Through Hole |
| Mounting Hole Diameter | - | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Insulation | Polyamide (PA46), Nylon 4/6 | Manufacturer Standard Lead Time | 4 Weeks |
| Length - Overall | 0.477" (12.12mm) | Length - Below Flange | 0.153" (3.89mm) |
| Length - Above Flange | 0.166" (4.22mm) | Insulation Color | Black |
| Insulation | Insulated | Flange Diameter | 0.110" (2.79mm) |
| Detailed Description | PC Pin Terminal Connector Through Hole Gold 0.025" (0.64mm) Dia | Contact Material | Brass Alloy |
| Contact Finish Thickness | 10.0µin (0.25µm) | Contact Finish | Gold |
| Board Thickness | - |
