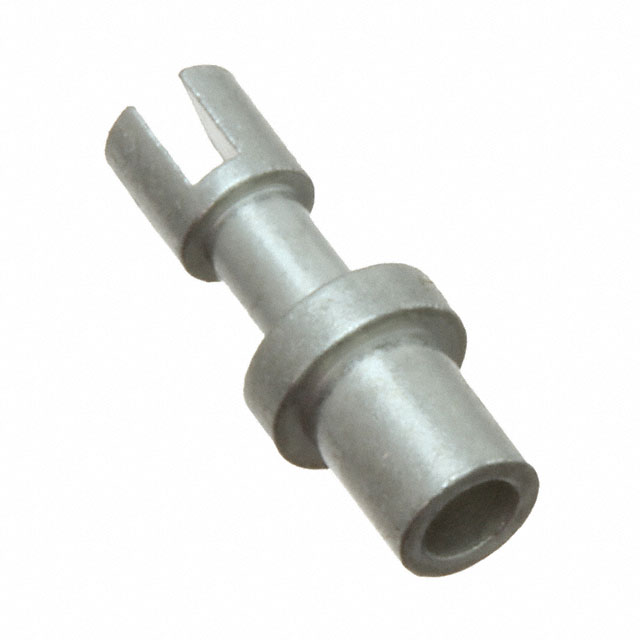

2516-2-01-80-00-00-07-0
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 2516-2-01-80-00-00-07-0 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 2516-2-01-80-00-00-07-0 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 2516-2-01-80-00-00-07-0 |
|---|---|
| Manufacturer | Mill-Max |
| Description | CONN PC PIN CIRC |
| Lead Free Status / RoHS Status | RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.314 | $0.276 | $0.26 | $0.249 | $0.238 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.217 | $0.195 | $0.173 | $0.157 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 2516-2-01-80-00-00-07-0 | Manufacturer | Mill-Max |
|---|---|---|---|
| Description | CONN PC PIN CIRC | Lead Free Status / RoHS Status | RoHS Compliant |
| Quantity Available | 125197 pcs | Data sheet | Solder Terminals Slotted (in.)Solder Terminals Slotted (metric) |
| Category | Connectors, Interconnects | Termination | Swage |
| Terminal Type | PC Pin | Terminal Style | Single End, Slotted |
| Series | 2516 | RoHS Status | RoHS Compliant |
| Pin Size - Below Flange | - | Pin Size - Above Flange | 0.063" (1.60mm) Dia |
| Packaging | Bulk | Other Names | 2516-2-01-80-00-00-07-0-ND ED11403 |
| Mounting Type | Through Hole | Mounting Hole Diameter | 0.094" (2.39mm) |
| Material - Insulation | - | Manufacturer Standard Lead Time | 5 Weeks |
| Length - Overall | 0.324" (8.23mm) | Length - Below Flange | 0.105" (2.67mm) |
| Length - Above Flange | 0.184" (4.67mm) | Insulation Color | - |
| Insulation | Non-Insulated | Flange Diameter | 0.125" (3.18mm) |
| Detailed Description | PC Pin Terminal Connector Through Hole Tin 0.063" (1.60mm) Dia | Contact Material | Brass Alloy |
| Contact Finish Thickness | 200.0µin (5.08µm) | Contact Finish | Tin |
| Board Thickness | 0.062" (1.57mm) |
