2303-2-01-80-00-00-07-0

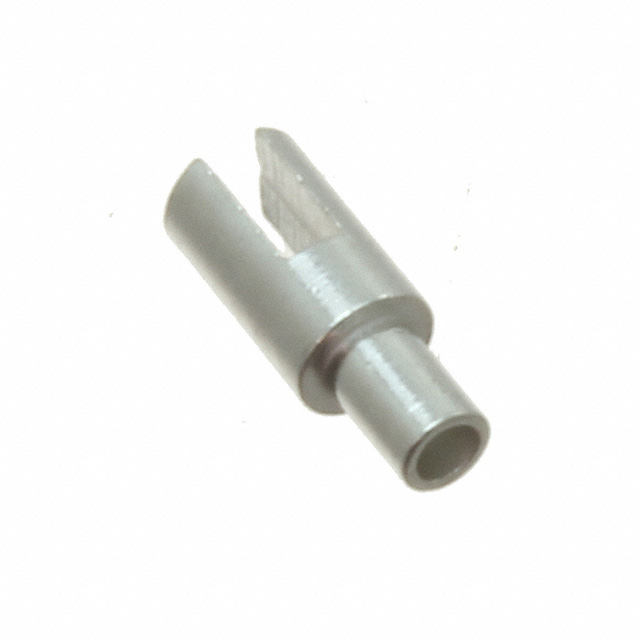

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 2303-2-01-80-00-00-07-0 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 2303-2-01-80-00-00-07-0 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 2303-2-01-80-00-00-07-0 |
|---|---|
| Manufacturer | Mill-Max |
| Description | CONN PC PIN CIRC |
| Lead Free Status / RoHS Status | RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.311 | $0.273 | $0.257 | $0.247 | $0.236 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.214 | $0.193 | $0.172 | $0.155 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 2303-2-01-80-00-00-07-0 | Manufacturer | Mill-Max |
|---|---|---|---|
| Description | CONN PC PIN CIRC | Lead Free Status / RoHS Status | RoHS Compliant |
| Quantity Available | 142754 pcs | Data sheet | Solder Terminals Slotted (in.)Solder Terminals Slotted (metric) |
| Category | Connectors, Interconnects | Termination | Swage |
| Terminal Type | PC Pin | Terminal Style | Single End, Slotted |
| Series | 2303 | RoHS Status | RoHS Compliant |
| Pin Size - Below Flange | - | Pin Size - Above Flange | 0.094" (2.39mm) Dia |
| Packaging | Bulk | Mounting Type | Through Hole |
| Mounting Hole Diameter | 0.064" (1.63mm) | Material - Insulation | - |
| Manufacturer Standard Lead Time | 5 Weeks | Length - Overall | 0.240" (6.10mm) |
| Length - Below Flange | 0.084" (2.13mm) | Length - Above Flange | 0.156" (3.96mm) |
| Insulation Color | - | Insulation | Non-Insulated |
| Flange Diameter | 0.094" (2.39mm) | Detailed Description | PC Pin Terminal Connector Through Hole Tin 0.094" (2.39mm) Dia |
| Contact Material | Brass Alloy | Contact Finish Thickness | 200.0µin (5.08µm) |
| Contact Finish | Tin | Board Thickness | 0.062" (1.57mm) |
