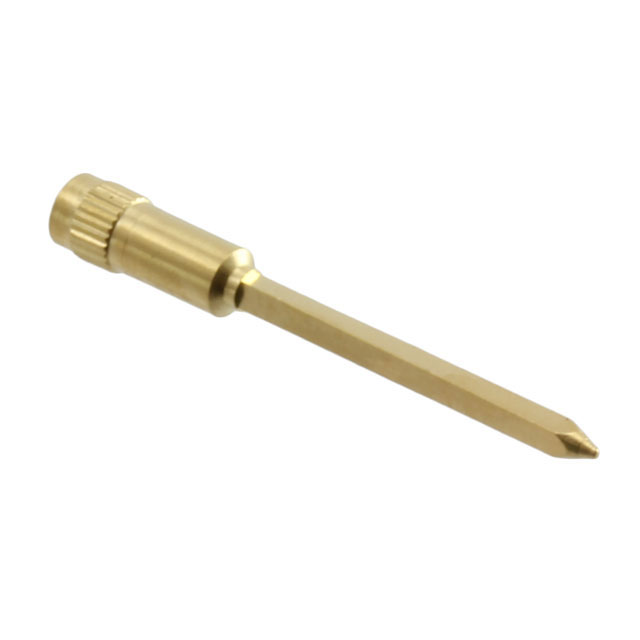

2297-2-17-15-16-27-02-0
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 2297-2-17-15-16-27-02-0 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 2297-2-17-15-16-27-02-0 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 2297-2-17-15-16-27-02-0 |
|---|---|
| Manufacturer | Mill-Max |
| Description | CONN PIN RCPT .022-.034 KNURL |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.186 | $0.176 | $0.159 | $0.141 | $0.135 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.123 | $0.118 | $0.097 | $0.088 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 2297-2-17-15-16-27-02-0 | Manufacturer | Mill-Max |
|---|---|---|---|
| Description | CONN PIN RCPT .022-.034 KNURL | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 233513 pcs | Data sheet | Wrapost Receptacles (in.)Wrapost Receptacles (metric) |
| Category | Connectors, Interconnects | Termination | Press-Fit, Knurled |
| Tail Type | Wire Wrap | Tail Diameter | 0.025" (0.64mm) Square |
| Socket Depth | 0.150" (3.81mm) | Series | 2297 |
| Pin Hole Diameter | 0.051" (1.30mm) | Packaging | Bulk |
| Other Names | 2297-217151627020 2297-217151627020-ND 2297217151627020 ED1245 |
Operating Temperature | -55°C ~ 125°C |
| Mounting Hole Diameter | 0.067" (1.70mm) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 5 Weeks | Length - Overall | 0.545" (13.84mm) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insertion Force | - |
| Flange Diameter | 0.070" (1.77mm) | Features | - |
| Detailed Description | Pin Receptacle Connector 0.022" ~ 0.034" (0.56mm ~ 0.86mm) Wire Wrap Press-Fit, Knurled | Contact Material | Beryllium Copper |
| Contact Finish Thickness | 30.0µin (0.76µm) | Contact Finish | Gold |
| Board Thickness | - | Accepts Square Pin Size | - |
| Accepts Pin Diameter | 0.022" ~ 0.034" (0.56mm ~ 0.86mm) |
