Home > Products > Connectors, Interconnects > Terminals - PC Pin, Single Post Connectors > 1946-0-00-15-00-00-03-0

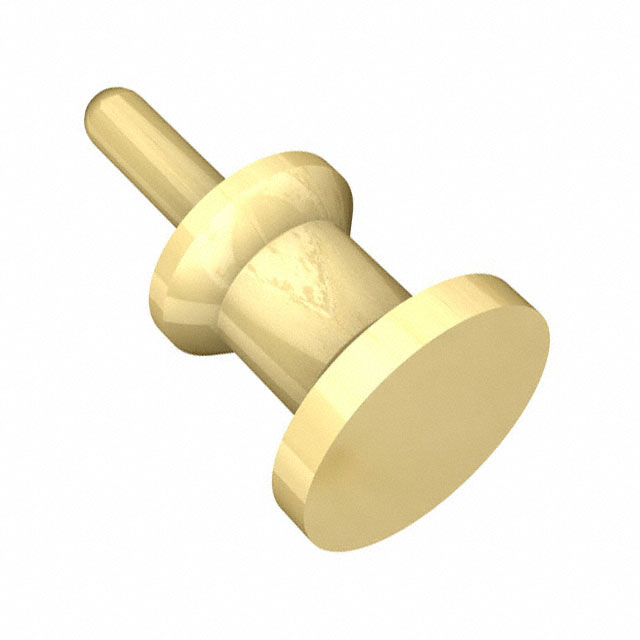

1946-0-00-15-00-00-03-0

1946-0-00-15-00-00-03-0
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1946-0-00-15-00-00-03-0 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number 1946-0-00-15-00-00-03-0
Manufacturer Mill-Max
Description TARGET PIN SOLDERTAIL FLAT FACE
Lead Free Status / RoHS Status Lead free / RoHS Compliant
In Stock 712805 pcs
Reference Price
(In US Dollars)		1 pcs10 pcs25 pcs50 pcs100 pcs
$0.078$0.073$0.062$0.055$0.051
250 pcs500 pcs1000 pcs2500 pcs
$0.045$0.043$0.035$0.032

Submit a Request For Quotation on quantities greater than those displayed.

Target Price:(USD)
Quantity:
Total:
$0.078

Product parameter

Part Number 1946-0-00-15-00-00-03-0 Manufacturer Mill-Max
Description TARGET PIN SOLDERTAIL FLAT FACE Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 712805 pcs Data sheet 194x, 195x Series (in)194x, 195x Series (metrc)
Category Connectors, Interconnects Termination Solder
Terminal Type PC Pin Terminal Style Single End
Series 1946 Pin Size - Below Flange -
Pin Size - Above Flange 0.030" (0.76mm) Dia Packaging Bulk
Other Names ED1360 Mounting Type Through Hole
Mounting Hole Diameter - Moisture Sensitivity Level (MSL) 1 (Unlimited)
Material - Insulation - Manufacturer Standard Lead Time 5 Weeks
Length - Overall 0.230" (5.84mm) Length - Below Flange -
Length - Above Flange 0.110" (2.79mm) Lead Free Status / RoHS Status Lead free / RoHS Compliant
Insulation Color - Insulation Non-Insulated
Flange Diameter 0.125" (3.18mm) Detailed Description PC Pin Terminal Connector Through Hole Gold 0.030" (0.76mm) Dia
Contact Material Brass Alloy Contact Finish Thickness 10.0µin (0.25µm)
Contact Finish Gold Board Thickness -
