1943-0-00-15-00-00-03-0
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1943-0-00-15-00-00-03-0 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1943-0-00-15-00-00-03-0 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1943-0-00-15-00-00-03-0 |
|---|---|
| Manufacturer | Mill-Max |

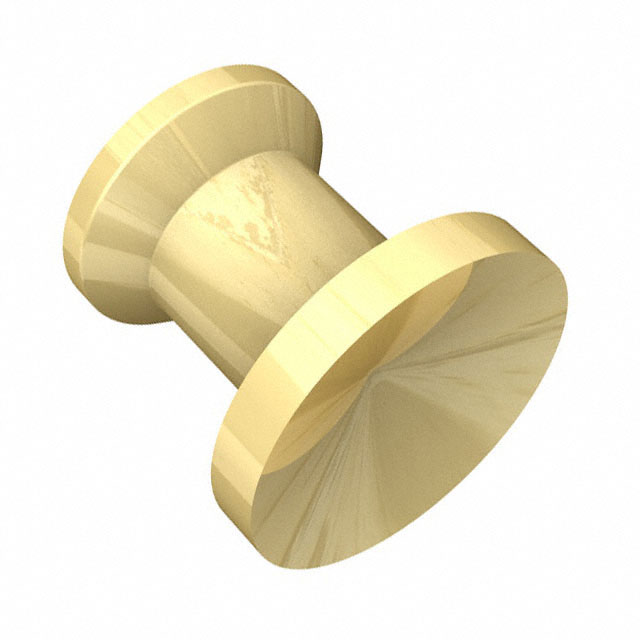

| Description | TARGET PIN SMT CONCAVE FACE |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.061 | $0.058 | $0.049 | $0.043 | $0.04 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.035 | $0.034 | $0.028 | $0.025 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1943-0-00-15-00-00-03-0 | Manufacturer | Mill-Max |
|---|---|---|---|
| Description | TARGET PIN SMT CONCAVE FACE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 910968 pcs | Data sheet | 194x, 195x Series (in)194x, 195x Series (metrc) |
| Category | Connectors, Interconnects | Termination | Solder |
| Terminal Type | PC Pin | Terminal Style | Single End |
| Series | 1943 | Pin Size - Below Flange | - |
| Pin Size - Above Flange | 0.067" (1.70mm) Dia | Packaging | Bulk |
| Other Names | ED1357 | Mounting Type | Surface Mount |
| Mounting Hole Diameter | 0.110" (2.79mm) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Insulation | - | Manufacturer Standard Lead Time | 5 Weeks |
| Length - Overall | 0.120" (3.05mm) | Length - Below Flange | - |
| Length - Above Flange | 0.100" (2.54mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Color | - | Insulation | Non-Insulated |
| Flange Diameter | 0.125" (3.18mm) | Detailed Description | PC Pin Terminal Connector Surface Mount Gold 0.067" (1.70mm) Dia |
| Contact Material | Brass Alloy | Contact Finish Thickness | 10.0µin (0.25µm) |
| Contact Finish | Gold | Board Thickness | - |
