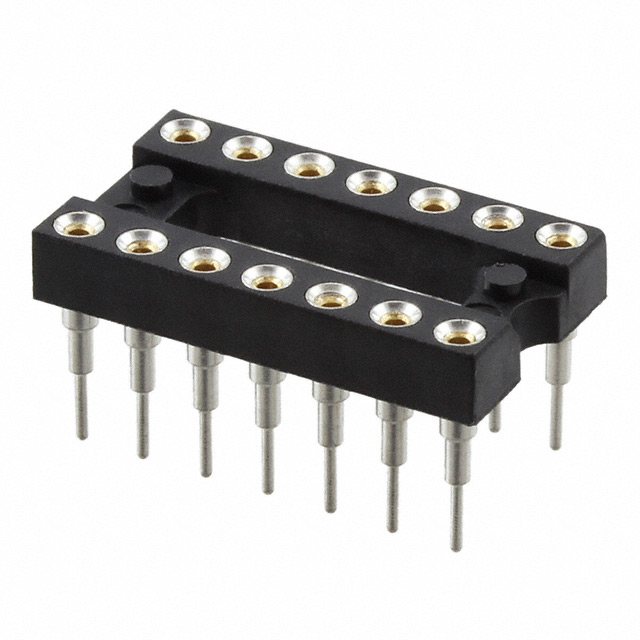

116-47-314-41-006000
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 116-47-314-41-006000 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 116-47-314-41-006000 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 116-47-314-41-006000 |
|---|---|
| Manufacturer | Mill-Max |
| Description | CONN IC DIP SOCKET 14POS GOLD |
| Lead Free Status / RoHS Status |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 28 pcs | 56 pcs | 112 pcs |
|---|---|---|---|---|---|
| $0.584 | $0.53 | $0.498 | $0.476 | $0.455 | |
| 252 pcs | 504 pcs | 1008 pcs | 2520 pcs | ||
| $0.411 | $0.379 | $0.325 | $0.303 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 116-47-314-41-006000 | Manufacturer | Mill-Max |
|---|---|---|---|
| Description | CONN IC DIP SOCKET 14POS GOLD | Lead Free Status / RoHS Status | |
| Quantity Available | 78029 pcs | Data sheet | 116 Series (metric)116 Series (in.) |
| Category | Connectors, Interconnects | Type | DIP, 0.3" (7.62mm) Row Spacing |
| Termination Post Length | 0.118" (3.00mm) | Termination | Solder |
| Series | 116 | Pitch - Post | 0.100" (2.54mm) |
| Pitch - Mating | 0.100" (2.54mm) | Packaging | Tube |
| Other Names | ED11134 | Operating Temperature | -55°C ~ 125°C |
| Number of Positions or Pins (Grid) | 14 (2 x 7) | Mounting Type | Through Hole |
| Material Flammability Rating | - | Manufacturer Standard Lead Time | 4 Weeks |
| Housing Material | Polycyclohexylenedimethylene Terephthalate (PCT), Polyester | Features | Open Frame |
| Current Rating | 3A | Contact Resistance | - |
| Contact Material - Post | Brass Alloy | Contact Material - Mating | Beryllium Copper |
| Contact Finish Thickness - Post | 200.0µin (5.08µm) | Contact Finish Thickness - Mating | Flash |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
