115-47-422-41-003000

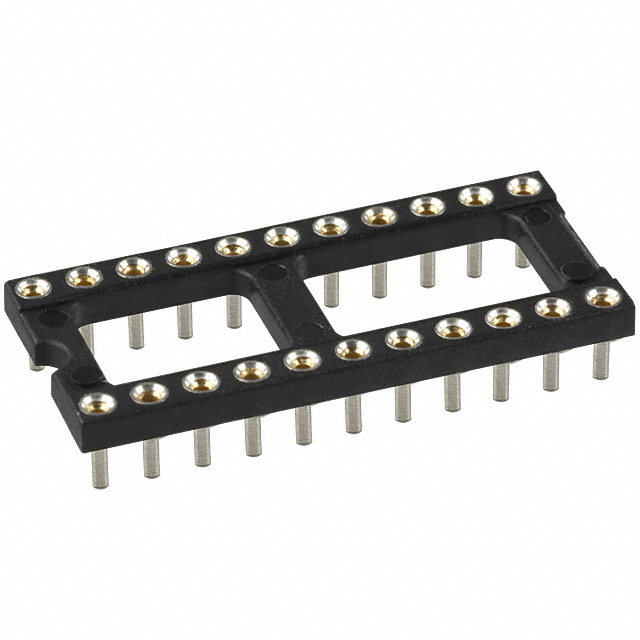

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 115-47-422-41-003000 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 115-47-422-41-003000 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 115-47-422-41-003000 |
|---|---|
| Manufacturer | Mill-Max |
| Description | CONN IC DIP SOCKET 22POS GOLD |
| Lead Free Status / RoHS Status |
| Reference Price (In US Dollars) | 1 pcs | 18 pcs | 36 pcs | 54 pcs | 108 pcs |
|---|---|---|---|---|---|
| $0.612 | $0.556 | $0.522 | $0.499 | $0.476 | |
| 252 pcs | 504 pcs | 1008 pcs | 2502 pcs | ||
| $0.431 | $0.397 | $0.34 | $0.317 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 115-47-422-41-003000 | Manufacturer | Mill-Max |
|---|---|---|---|
| Description | CONN IC DIP SOCKET 22POS GOLD | Lead Free Status / RoHS Status | |
| Quantity Available | 62764 pcs | Data sheet | 115...003 Series (in.)115...003 Series (metric) |
| Category | Connectors, Interconnects | Type | DIP, 0.4" (10.16mm) Row Spacing |
| Termination Post Length | 0.095" (2.41mm) | Termination | Solder |
| Series | 115 | Pitch - Post | 0.100" (2.54mm) |
| Pitch - Mating | 0.100" (2.54mm) | Packaging | Tube |
| Other Names | ED11125 | Operating Temperature | -55°C ~ 125°C |
| Number of Positions or Pins (Grid) | 22 (2 x 11) | Mounting Type | Through Hole |
| Material Flammability Rating | - | Manufacturer Standard Lead Time | 4 Weeks |
| Housing Material | Polycyclohexylenedimethylene Terephthalate (PCT), Polyester | Features | Open Frame |
| Current Rating | 3A | Contact Resistance | - |
| Contact Material - Post | Brass Alloy | Contact Material - Mating | Beryllium Copper |
| Contact Finish Thickness - Post | 200.0µin (5.08µm) | Contact Finish Thickness - Mating | Flash |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
