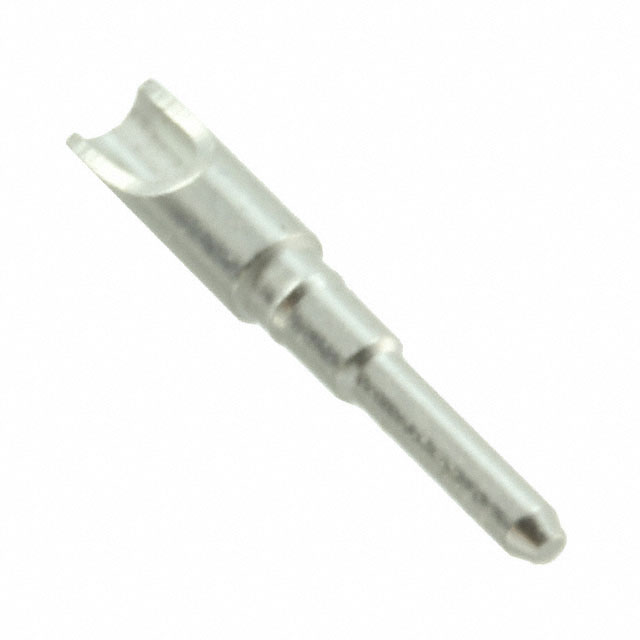

1140-0-01-80-00-00-03-0
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1140-0-01-80-00-00-03-0 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1140-0-01-80-00-00-03-0 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1140-0-01-80-00-00-03-0 |
|---|---|
| Manufacturer | Mill-Max |
| Description | CONN PC PIN CIRC .040DIA TIN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.072 | $0.068 | $0.058 | $0.051 | $0.047 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.042 | $0.04 | $0.033 | $0.03 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1140-0-01-80-00-00-03-0 | Manufacturer | Mill-Max |
|---|---|---|---|
| Description | CONN PC PIN CIRC .040DIA TIN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 821410 pcs | Data sheet | Printed Circuit Pins Series (metric)11x0,07x0 BrochurePrinted Circuit Pins Series (in) |
| Category | Connectors, Interconnects | Termination | Press-Fit |
| Terminal Type | PC Pin | Terminal Style | Wire |
| Series | 1140 | Pin Size - Below Flange | - |
| Pin Size - Above Flange | 0.040" (1.02mm) Dia | Packaging | Bulk |
| Other Names | ED1466 | Mounting Type | Through Hole |
| Mounting Hole Diameter | 0.057" (1.45mm) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Insulation | - | Manufacturer Standard Lead Time | 5 Weeks |
| Length - Overall | 0.452" (11.48mm) | Length - Below Flange | - |
| Length - Above Flange | 0.274" (6.96mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Color | - | Insulation | Non-Insulated |
| Flange Diameter | 0.072" (1.83mm) | Detailed Description | PC Pin Terminal Connector Through Hole Tin 0.040" (1.02mm) Dia |
| Contact Material | Brass Alloy | Contact Finish Thickness | 200.0µin (5.08µm) |
| Contact Finish | Tin | Board Thickness | - |
