1134-0-18-15-47-27-10-0

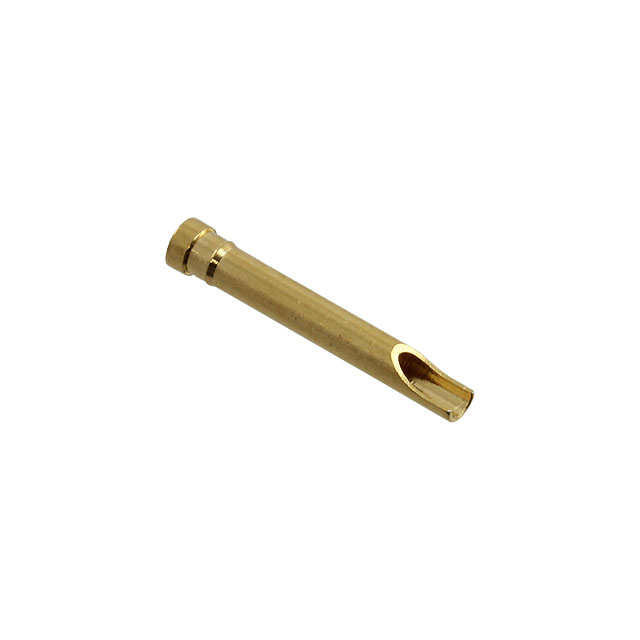

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1134-0-18-15-47-27-10-0 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1134-0-18-15-47-27-10-0 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1134-0-18-15-47-27-10-0 |
|---|---|
| Manufacturer | Mill-Max |
| Description | CONN PIN RCPT .025-.037 PRESSFIT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.211 | $0.199 | $0.179 | $0.159 | $0.153 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.139 | $0.133 | $0.11 | $0.10 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1134-0-18-15-47-27-10-0 | Manufacturer | Mill-Max |
|---|---|---|---|
| Description | CONN PIN RCPT .025-.037 PRESSFIT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 198589 pcs | Data sheet | Pin Receptacles (metric)Pin Receptacles (in.) |
| Category | Connectors, Interconnects | Termination | Press-Fit |
| Tail Type | Solder Cup | Tail Diameter | - |
| Socket Depth | 0.200" (5.08mm) | Series | 1134 |
| Pin Hole Diameter | 0.051" (1.30mm) | Packaging | Bulk |
| Other Names | ED1292 | Operating Temperature | -55°C ~ 125°C |
| Mounting Hole Diameter | 0.061" (1.55mm) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 5 Weeks | Length - Overall | 0.450" (11.43mm) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insertion Force | - |
| Flange Diameter | 0.070" (1.77mm) | Features | - |
| Detailed Description | Pin Receptacle Connector 0.025" ~ 0.037" (0.64mm ~ 0.94mm) Solder Cup Press-Fit | Contact Material | Beryllium Copper |
| Contact Finish Thickness | 10.0µin (0.25µm) | Contact Finish | Gold |
| Board Thickness | - | Accepts Square Pin Size | 0.025" (0.64mm) |
| Accepts Pin Diameter | 0.025" ~ 0.037" (0.64mm ~ 0.94mm) |
